(Solved): You are given the Class AB Output Amplifier as shown below. Give a short description, transistor-b ...

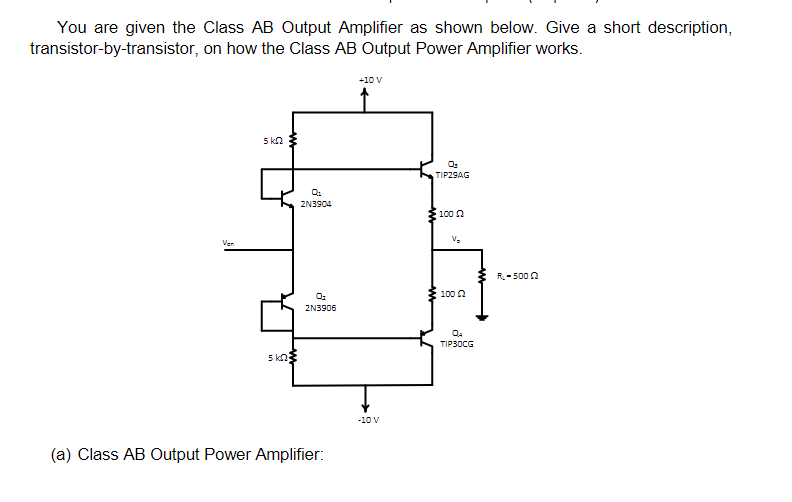

You are given the Class AB Output Amplifier as shown below. Give a short description, transistor-by-transistor, on how the Class AB Output Power Amplifier works. (a) Class AB Output Power Amplifier:
Expert Answer
GIVEN is a class AB power amplifier Required to explain the circuit operation. EXPLANATION The given class AB power amplifier is biased by using the diode connected transistors Q1 and Q2.The base of Q1 and Q2 ar
