(Solved): with complete steps and calculation Q2(a) Based on the circuit shown in Figure Q2(a), solve the foll ...
with complete steps and calculation

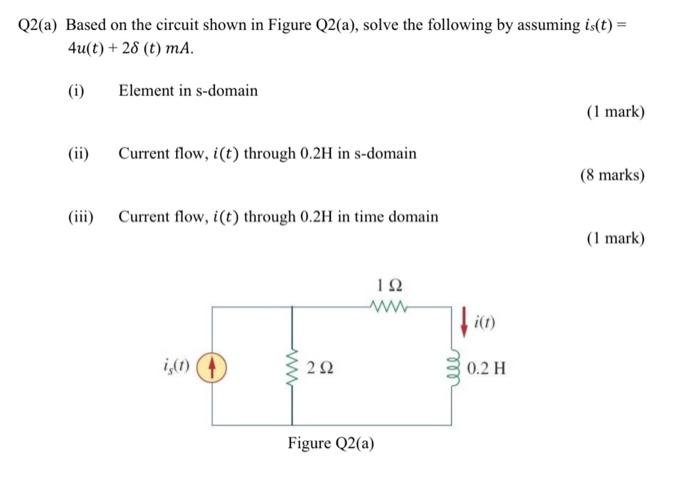

Q2(a) Based on the circuit shown in Figure Q2(a), solve the following by assuming is(t) = 4u(t) + 28 (t) mA. (i) Element in s-domain (1 mark) (ii) Current flow, i(t) through 0.2H in s-domain (8 marks) (iii) Current flow, i(t) through 0.2H in time domain (1 mark) 192 is(1) (4 www 292 Figure Q2(a) elle i(t) 0.2 H
