will rate if correct! all part of same questionThe I vs \( t \) graph shown below is for an LR circuit with a battery.
Determine the time constant of the LR circuit.
\[

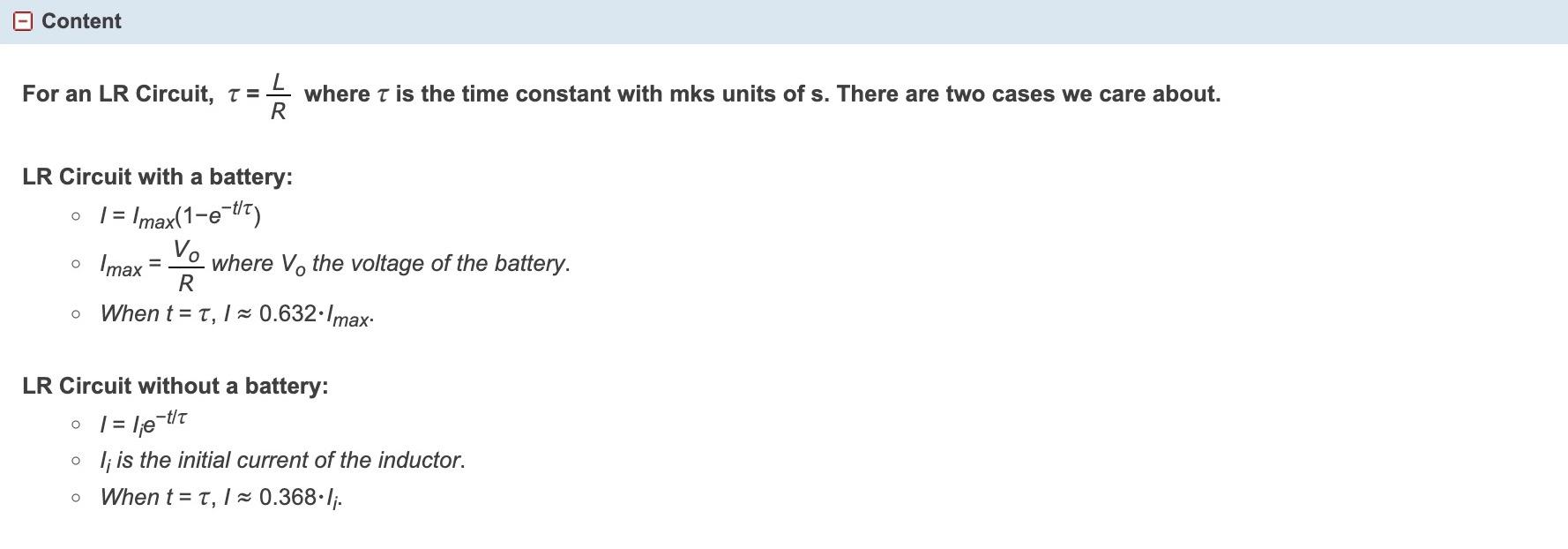

\beFor an LR Circuit, \( \tau=\frac{L}{R} \) where \( \tau \) is the time constant with mks units of s. There are two cases we c

The I vs graph shown below is for an LR circuit with a battery. Determine the time constant of the LR circuit. Second graph The I vs graph shown below is for an LR circuit without a battery. Determine the time constant of the LR circuit. If , determine . For an LR Circuit, where is the time constant with mks units of s. There are two cases we care about. LR Circuit with a battery: where the voltage of the battery. When . LR Circuit without a battery: is the initial current of the inductor. When


We have an Answer from Expert

View Expert Answer

Expert Answer


1.Io=765AAt t = 20s we have I = 48/5 AUsing I(t)=Io
