(Solved): What is the output \( Q \) for the rising edge \( D \) flip-flop shown in the figure below? Logic ...

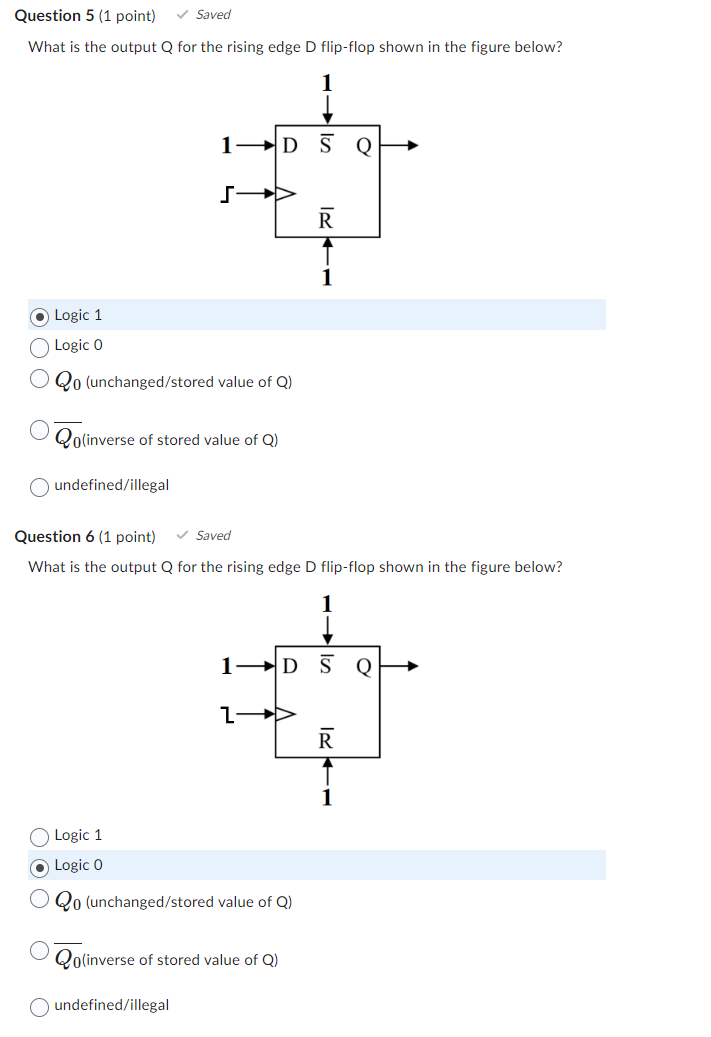

What is the output \( Q \) for the rising edge \( D \) flip-flop shown in the figure below? Logic 1 Logic 0 \( Q_{0} \) (unchanged/stored value of \( Q \) ) \( \overline{Q_{0}} \) (inverse of stored value of \( \mathrm{Q} \) ) undefined/illegal Question 6 (1 point) \( \checkmark \) Saved What is the output \( Q \) for the rising edge \( D \) flip-flop shown in the figure below? Logic 1 Logic 0 \( Q_{0} \) (unchanged/stored value of \( Q \) ) \( \overline{Q_{0}} \) (inverse of stored value of \( \mathrm{Q} \) ) undefined/illegal
