(Solved): use the following code:to answer a-j please!!!# Binary Search Tree implementation in Pythonclass BST ...
use the following code:
to answer a-j please!!!
# Binary Search Tree implementation in Python
class BST_Node():
def __init__(self, data):
self.data = data
self.left = None
self.right = None
def insert(self, data):
if data == self.data: # skip (return) if new data exist already in the tree
return
# Recursively call the insert method to add the data to the leaf
if data < self.data:
# Add to left subtree
if self.left: # keep calling insert(data) until @ leaf.
self.left.insert(data)
else: # at leaf add the BST_Node(data)
self.left = BST_Node(data)
# Recursively call the insert method to add the data to the leaf
else:
# Add to right subtree
if self.right:# keep calling insert(data) until @ leaf.
self.right.insert(data)
else:
self.right = BST_Node(data)
# Given a non-empty binary search tree, return the node with minimum key value
# find the mini in the predecessor and successor tree branches ).
# Note that the entire tree does not need to be searched
def minValueNode(self, node):
current = node
# loop down to find the leftmost leaf
while (current.left is not None):
current = current.left
return current
# def maxiValueNode(self, node): Write you codes here....
#
def deleteNode(self,rt, key): # modify to support predecessor replacement.
# Base Case
if rt is None:
return rt
# If the key to be deleted is smaller than the root's
# key then it lies in left subtree
if key < rt.data:
rt.left = rt.deleteNode(rt.left, key)
# If the data to be delete
# is greater than the root's data then it lies in right (successor) subtree
elif (key > rt.data):
rt.right = rt.deleteNode(rt.right, key)
# If key is same as root's key, then this is the node
# to be deleted
else:
# Node with only one child or no child
if rt.left is None:
temp = rt.right
rt = None
return temp
elif rt.right is None:
temp = rt.left
rt = None
return temp
# Node with two children: Get the smallest of successor (smallest in the right subtree)
temp = rt.minValueNode(rt.right)
# Copy the inorder successor's
# content to this node
rt.data = temp.data
# Delete the inorder successor
rt.right = rt.deleteNode(rt.right, temp.data)
return rt
# Inorder_traversal: Visit Left subtree, then Root node, then Right subtree
def in_order_traversal(self): # Left -> Root -> Right
lst = [] # build the list from the traversal walk
# Getting all data of the Left Subtree
if self.left: # build the left
lst += self.left.in_order_traversal() # Recursively get all the data of the left subtree and add them into the list
# Adding the root node to the list
lst.append(self.data)
# Getting all elements of the Right Subtree
if self.right:
lst += self.right.in_order_traversal() # Recursively get all the elements of the right subtree and add them into the list
return lst
# Pre_order_traversal: Get all elements from the Root node then the left subtree and then the Right subtree
def pre_order_traversal(self): # Root -> Left -> Right
data = []
data.append(self.data)
if self.left:
data += self.left.pre_order_traversal() # Recursively get all the data of the left subtree and add them into the list
if self.right:
data += self.right.pre_order_traversal() # Recursively get all the data of the right subtree and add them into the list
return data # get the Root node element
# Pre_order_traversal: Get all elements from the Right subtree then the left subtree and finally the Root node
def post_order_traversal(self): # Left -> Right -> Root
data = []
if self.left:
data += self.left.post_order_traversal() # Recursively get all the data of the left subtree and add them into the list
if self.right:
data += self.right.post_order_traversal() # Recursively get all the data of the right subtree and add them into the list
data.append(self.data) # Get the Root node element
return data
def search_element(self, elem): # complexity of O(log n)
if self == None:
return
if self.data == elem:
return True
elif elem < self.data:
# if yes, element would be on the left
if self.left:
return self.left.search_element(elem)
else:
return False
else:
# if yes, element would be on the right
if self.right:
return self.right.search_element(elem)
else:
return False
def display(self):
lines, *_ = self._display_aux()
for line in lines:
print(line)
def _display_aux(self):
"""Returns list of strings, width, height, and horizontal coordinate of the root."""
# No child.
if self.right is None and self.left is None:
line = '%s' % self.data
width = len(line)
height = 1
middle = width // 2
return [line], width, height, middle
# Only left child.
if self.right is None:
lines, n, p, x = self.left._display_aux()
s = '%s' % self.data
u = len(s)
first_line = (x + 1) * ' ' + (n - x - 1) * '_' + s
second_line = x * ' ' + '/' + (n - x - 1 + u) * ' '
shifted_lines = [line + u * ' ' for line in lines]
return [first_line, second_line] + shifted_lines, n + u, p + 2, n + u // 2
# Only right child.
if self.left is None:
lines, n, p, x = self.right._display_aux()
s = '%s' % self.data
u = len(s)
first_line = s + x * '_' + (n - x) * ' '
second_line = (u + x) * ' ' + '\\' + (n - x - 1) * ' '
shifted_lines = [u * ' ' + line for line in lines]
return [first_line, second_line] + shifted_lines, n + u, p + 2, u // 2
# Two children.
left, n, p, x = self.left._display_aux()
right, m, q, y = self.right._display_aux()
s = '%s' % self.data
u = len(s)
first_line = (x + 1) * ' ' + (n - x - 1) * '_' + s + y * '_' + (m - y) * ' '
second_line = x * ' ' + '/' + (n - x - 1 + u + y) * ' ' + '\\' + (m - y - 1) * ' '
if p < q:
left += [n * ' '] * (q - p)
elif q < p:
right += [m * ' '] * (p - q)
zipped_lines = zip(left, right)
lines = [first_line, second_line] + [a + u * ' ' + b for a, b in zipped_lines]
return lines, n + m + u, max(p, q) + 2, n + u // 2
def sum_of_all_elements_in_tree(self):
return sum(self.in_order_traversal())
def max_element_in_tree(self):
return max(self.in_order_traversal())
def min_element_in_tree(self):
return min(self.in_order_traversal())
# Tree Builder helper method
def is_BST(root):
stack = []
prev = None
while root or stack:
while root:
stack.append(root)
root = root.left
root = stack.pop()
if prev and root.data <= prev.data:
return False
prev = root
root = root.right
return True
def lst_to_BST(lst_elem: list):
if len(lst_elem) > 1:
# start with ls[0] as root
root_node = BST_Node(lst_elem[0])
for i in lst_elem[1:]: # compare to root[0] first
root_node.insert(i) # build BST
return root_node
else:
return print("Insufficient number of elements")
# the following defn uses the stack to move the "root"
def kth_smallest(root, k):
stack = []
while root or stack:
while root:
stack.append(root)
root = root.left # for Maxi set root.right
root = stack.pop() #
k -= 1
if k == 0:
break
root = root.right # for Maxi set root.left
return root.data
if __name__ == '__main__':
lsN = [17, 0, 4, 1, 20, 9, -1, 23, 18, -5, 34, 35]
lsT = ['one', 'two', 'three', 'four', 'five', 'six', 'seven', 'eight',
'nine', 'ten', 'eleven', 'twelve', 'thirteen', 'fourteen']
ls = lsT
#a. print the given list
#b. convert an assigned list to BST
#c check to see if it is a BST
#d Display the BST
kth = 5 # find the value of the 5th smallest number
# e. print the value of the 5th smallest
# print the miniValueNode and maximValneNode
# f. what is the minimum value ?
# g. what is the maximum value? (need to add a method is the BSTNode Class)
print('*'*60)
#h what is the In Order Traversal?
# i what is the Post Order Traversa?
# h what is the Pre Order Traversal?
print('-'*60)
#j delete the root mode and display.... what is the root node?
#k find the sum of all elements (for integer only)
print("DONE")

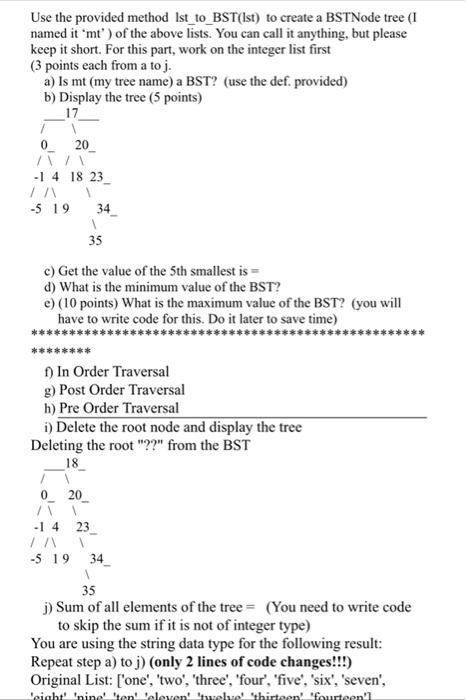

Use the provided method Ist_to_BST(Ist) to create a BSTNode tree (I named it 'mt') of the above lists. You can call it anything, but please keep it short. For this part, work on the integer list first (3 points each from a to \( \mathrm{j} \). a) Is mt (my tree name) a BST? (use the def. provided) b) Display the tree ( 5 points) c) Get the value of the 5 th smallest is \( = \) d) What is the minimum value of the BST? e) (10 points) What is the maximum value of the BST? (you will have to write code for this. Do it later to save time) f) In Order Traversal g) Post Order Traversal h) Pre Order Traversal i) Delete the root node and display the tree Deleting the root "??" from the BST j) Sum of all elements of the tree \( = \) (You need to write code to skip the sum if it is not of integer type) You are using the string data type for the following result: Repeat step a) to j) (only 2 lines of code changes!!!) Original List: ['one', 'two', 'three', 'four', 'five', 'six', 'seven',
Expert Answer
please check the below prograam step by step for better understanding.... class BST_Node(): def __init__(self, data): self.data = data self.left = Non
