(Solved): two version of the 4-bars mechanism are show below. 1. Two versions of the 4-bar mechanism are shown ...
two version of the 4-bars mechanism are show below.

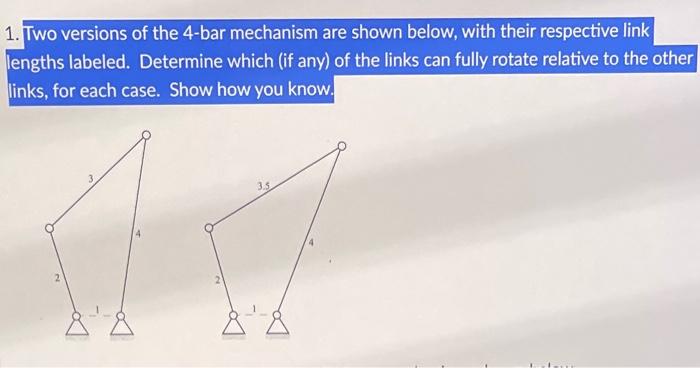

1. Two versions of the 4-bar mechanism are shown below, with their respective link lengths labeled. Determine which (if any) of the links can fully rotate relative to the other links, for each case. Show how you know.

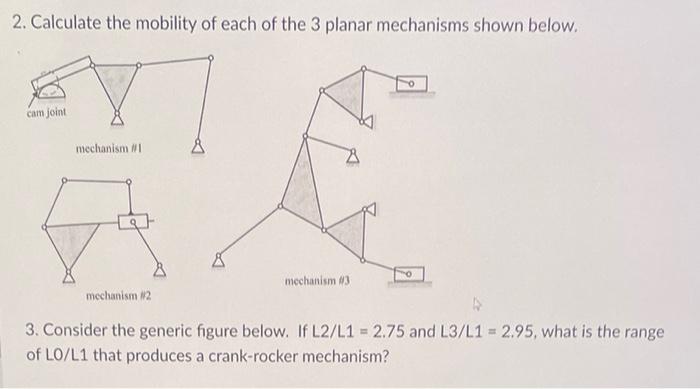

2. Calculate the mobility of each of the 3 planar mechanisms shown below. 3. Consider the generic figure below. If \( \mathrm{L} 2 / \mathrm{L} 1=2.75 \) and \( \mathrm{L} 3 / \mathrm{L} 1=2.95 \), what is the range of LO/L1 that produces a crank-rocker mechanism?

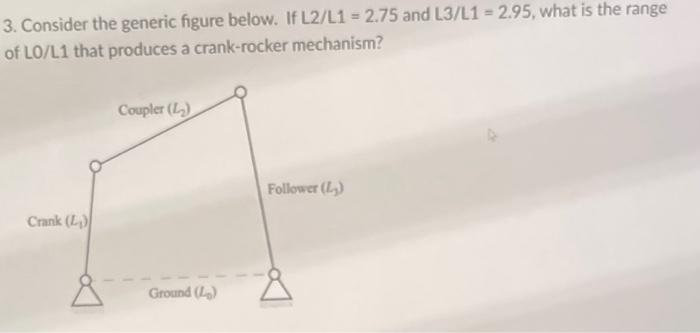

3. Consider the generic figure below. If \( \mathrm{L} 2 / \mathrm{L1}=2.75 \) and \( \mathrm{L} 3 / \mathrm{L1}=2.95 \), what is the range of LO/L1 that produces a crank-rocker mechanism?
