(Solved): Topic - 7: Design of a 4 Legged Jack-up Oil Rig No. of students in group; 5 WAVE & CURRENT GRAVITY ...

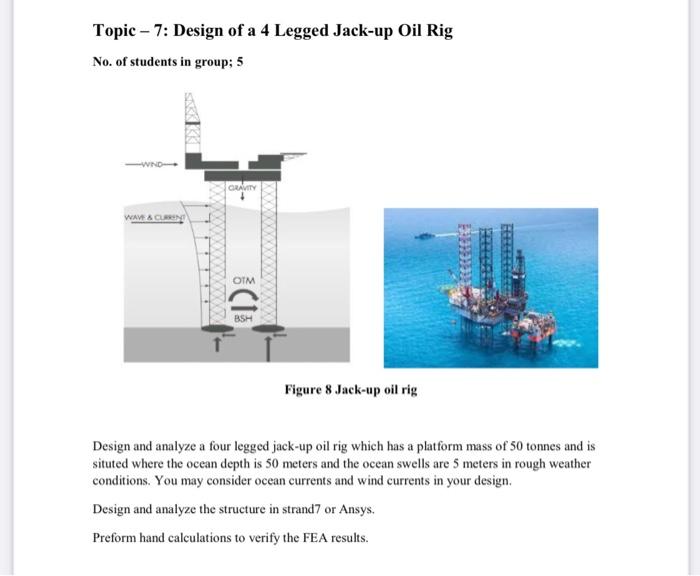

Topic - 7: Design of a 4 Legged Jack-up Oil Rig No. of students in group; 5 WAVE & CURRENT GRAVITY OTM BSH Figure 8 Jack-up oil rig Design and analyze a four legged jack-up oil rig which has a platform mass of 50 tonnes and is situted where the ocean depth is 50 meters and the ocean swells are 5 meters in rough weather conditions. You may consider ocean currents and wind currents in your design. Design and analyze the structure in strand7 or Ansys. Preform hand calculations to verify the FEA results.
Expert Answer
FOUR LEGGED JACK-UP OIL RIG INTRODUCTION There are many types of offshore platforms that are used to investigate and produce oil. The jack-up platform is one of the most applicable platforms used for these purposes. The Jack-up platform should be des
