(Solved): There is a door-shaped structure with force as shown in the figure. The entire section of EI is 30,0 ...

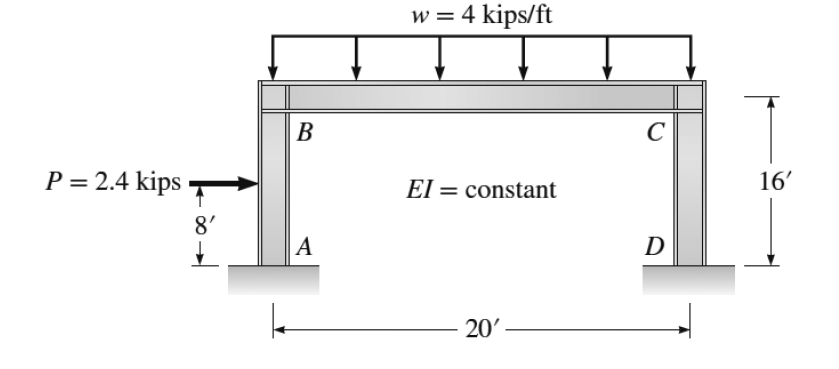

There is a door-shaped structure with force as shown in the figure. The entire section of EI is 30,000 (kips/inch2) and its I is 300 (in4). Analyze this structure and find the bending moment of each point A,B,C,D.
Expert Answer
The first step is to calculate the distributed load acting on the beam. The distributed load is a uniform load of 4 kips/ft acting over the length of
