(Solved): The state table of a moore model synchronous sequential circuit is given by the lable below with tw ...

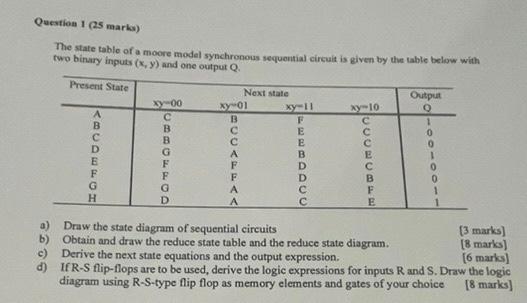

The state table of a moore model synchronous sequential circuit is given by the lable below with two binary inputs \( (x, y) \) and one output \( Q \). a) Draw the state diagram of sequential circuits b) Obtain and draw the reduce state table and the reduce state diagram. [3 marks] c) Derive the next state equations and the output expression. [8 marks] d) If R-S flip-flops are to be used, derive the logic expressions for inputs R and S. Draw the logic diagram using R-S-type flip flop as memory elements and gates of your choice [8 marks]
