(Solved): The state diagram of a circuit is shown. State \( \mathbf{S}_{0} \) is the initial state. a. Ident ...

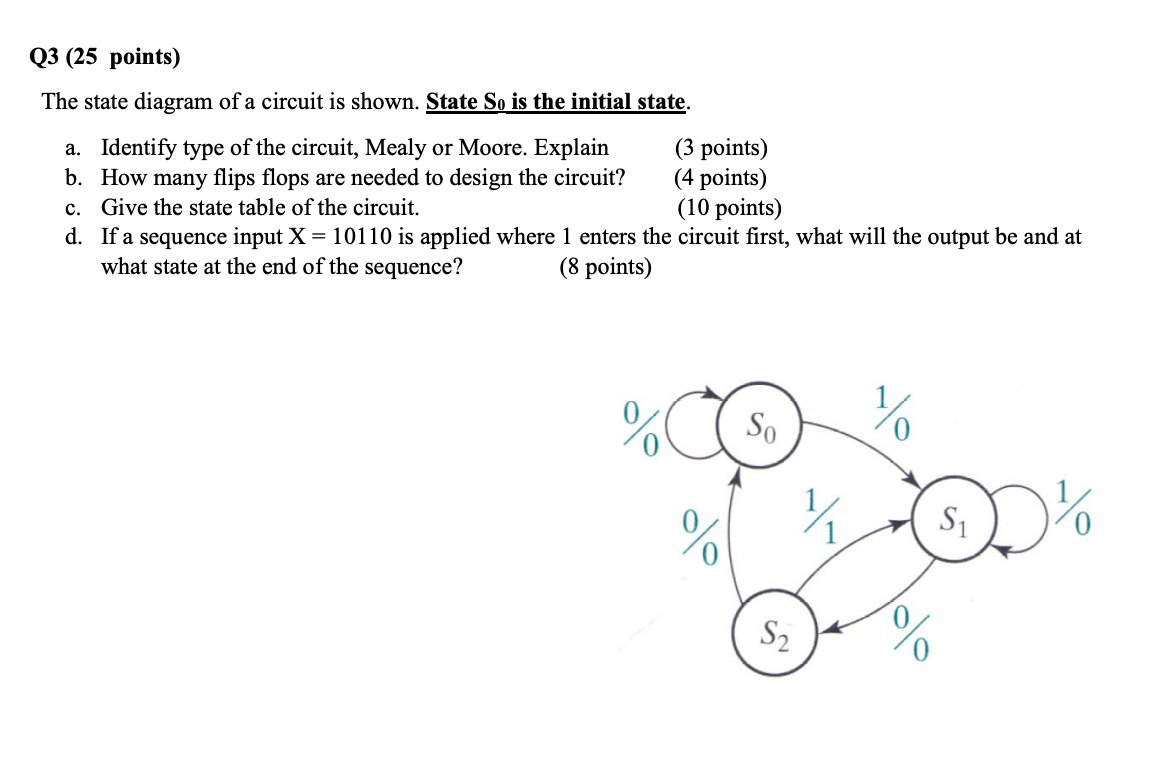

The state diagram of a circuit is shown. State \( \mathbf{S}_{0} \) is the initial state. a. Identify type of the circuit, Mealy or Moore. Explain (3 points) b. How many flips flops are needed to design the circuit? (4 points) c. Give the state table of the circuit. (10 points) d. If a sequence input \( \mathrm{X}=10110 \) is applied where 1 enters the circuit first, what will the output be and at what state at the end of the sequence? (8 points)
Expert Answer
a) In Moore Circuit output is fixed for each state but here in our given example if we see we observe that our output changes as input changes but in Moore Circuit every state will have fixed output no
