(Solved): The SPST switch in the circuit of the figure above closes at \( t=0 \), after it had been opened f ...

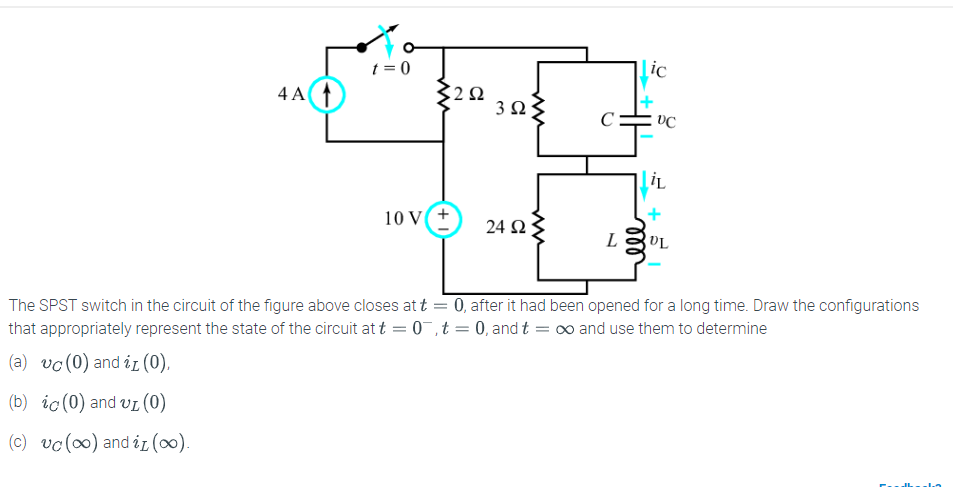

The SPST switch in the circuit of the figure above closes at \( t=0 \), after it had been opened for a Iong time. Draw the configurations that appropriately represent the state of the circuit at \( t=0^{-}, t=0 \), and \( t=\infty \) and use them to determine (a) \( v_{C}(0) \) and \( i_{L}(0) \) (b) \( i_{C}(0) \) and \( v_{L}(0) \) (c) \( v_{C}(\infty) \) and \( i_{L}(\infty) \)
