(Solved): The simply supported truss is subjected to the central distributed load w=200l(b)/(f)t. The top memb ...

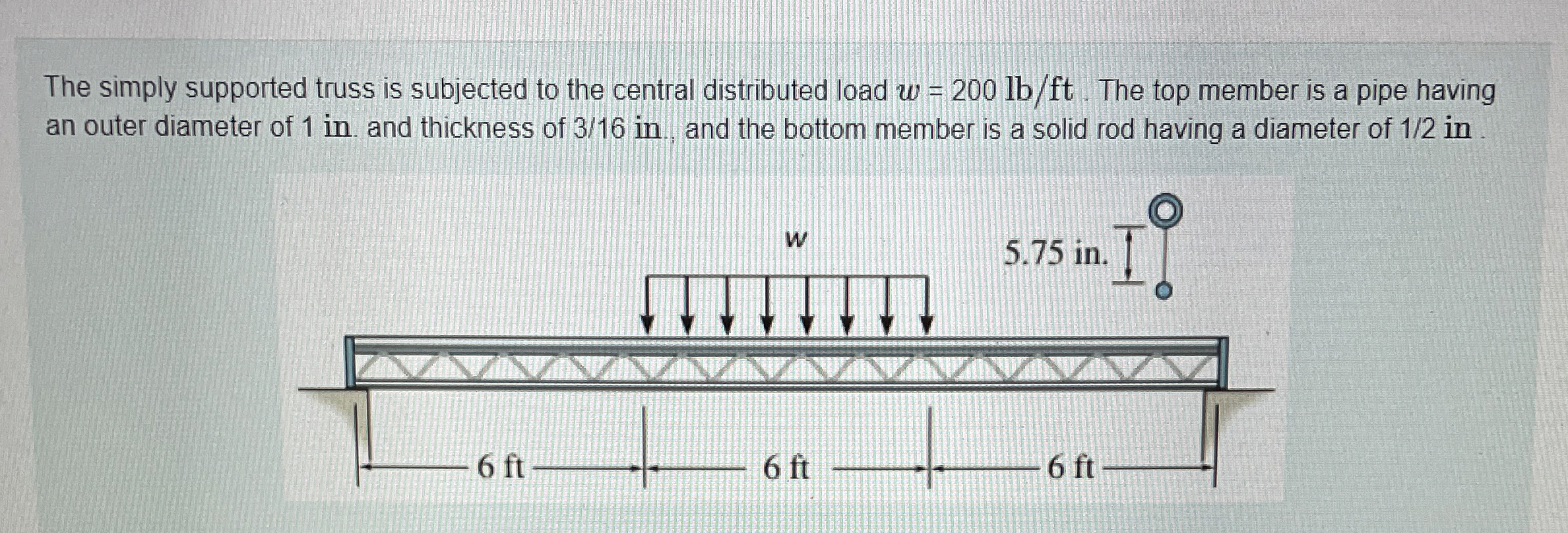

The simply supported truss is subjected to the central distributed load

w=200l(b)/(f)t

. The top member is a pipe having an outer diameter of 1 in. and thickness of

(3)/(16)

in., and the bottom member is a solid rod having a diameter of

(1)/(2)

in

student submitted image, transcription available below
