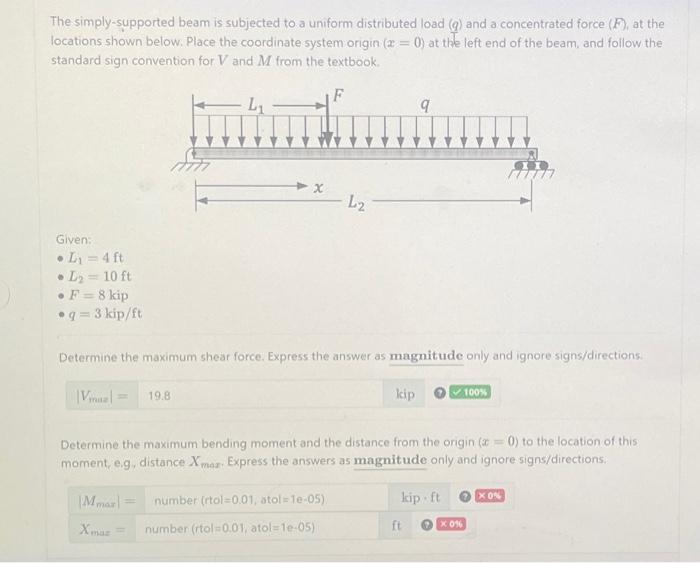

The simply-supported beam is subjected to a uniform distributed load (g) and a concentrated force (F), at the locations shown below. Place the coordinate system origin (x = 0) at the left end of the beam, and follow the standard sign convention for V and M from the textbook. Given: L? = 4 ft • L? = 10 ft • F = 8 kip • q = 3 kip/ft. Determine the maximum bending moment and the distance from the origin (x = 0) to the location of this moment, e.g., distance Xmax. Express the answers as magnitude only and ignore signs/directions.
I found the x value where the shear force = 0, and plugged it into my moment equation but this did not work.
The simply-supported beam is subjected to a uniform distributed load and a concentrated force , at the locations shown below. Place the coordinate system origin at the left end of the beam, and follow the standard sign convention for and from the textbook. Given: - - - kip - Determine the maximum shear force. Express the answer as magnitude only and ignore signs/directions. Determine the maximum bending moment and the distance from the origin to the location of this moment, e.g, distance . Express the answers as magnitude only and ignore signs/directions.
