(Solved): The schematic diagram in Figure. 10 shows a multiplier capable of multiplying two-digit binary numb ...

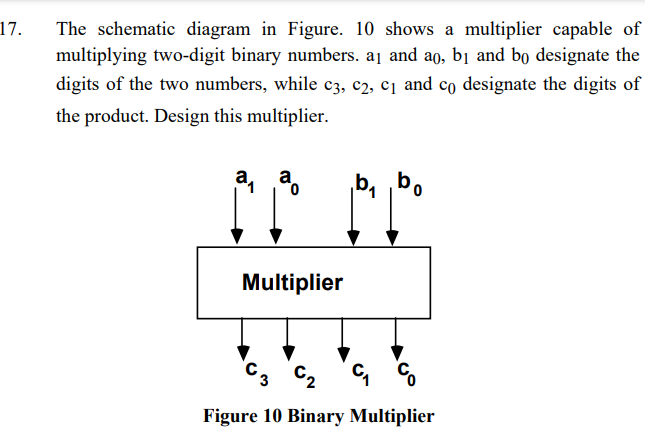

The schematic diagram in Figure. 10 shows a multiplier capable of multiplying two-digit binary numbers. ${\mathrm{a}}_1$ and ${\mathrm{a}}_0,{\mathrm{b}}_1$ and ${\mathrm{b}}_0$ designate the digits of the two numbers, while $c_3,c_2,c_1$ and $c_0$ designate the digits of the product. Design this multiplier. Figure 10 Binary Multiplier
