The Plane Truss shown in Figure Q1 is composed of members having a square \( 15 \mathrm{~mm} \times 15 \) \( \mathrm{mm} \) c

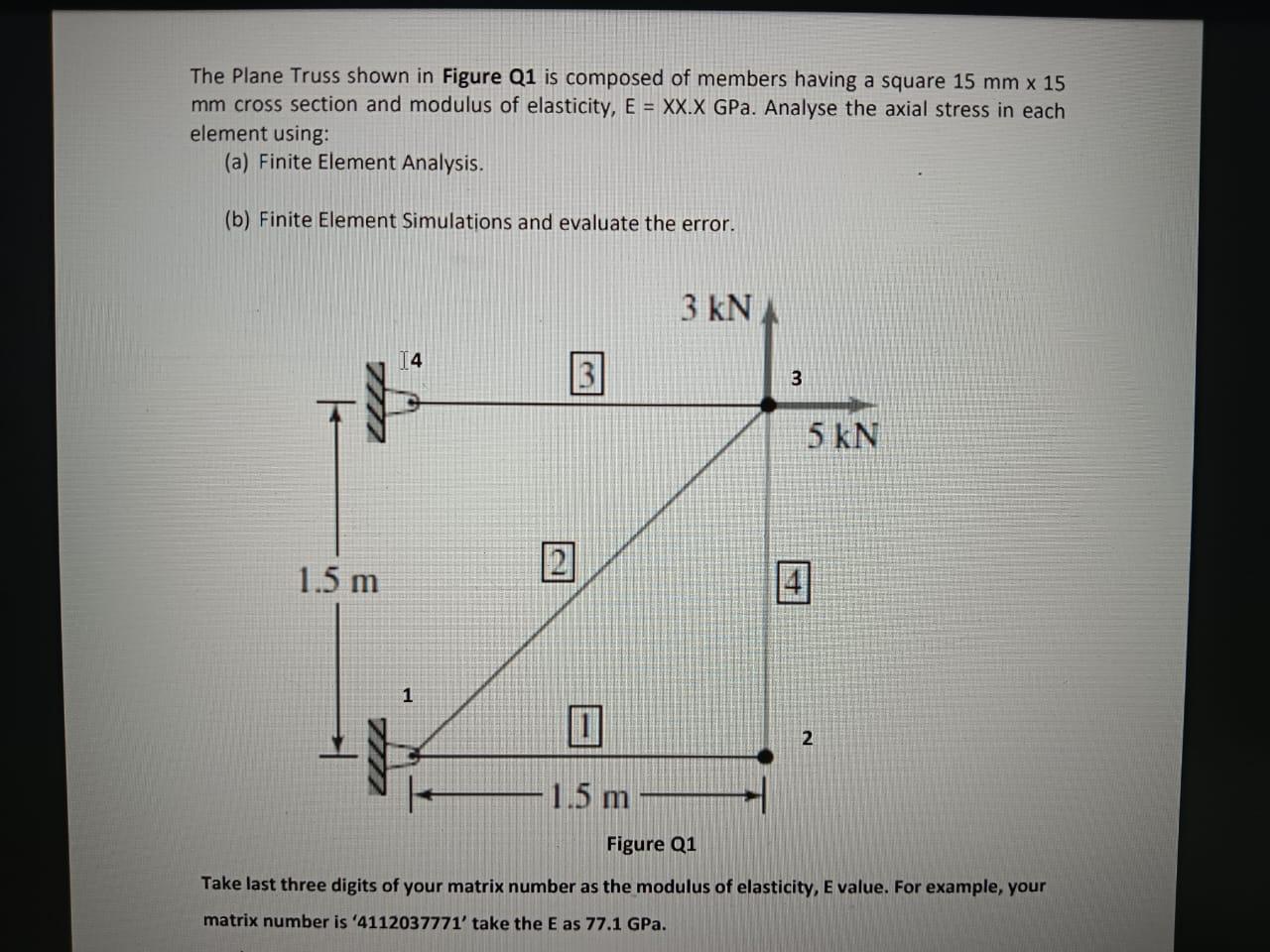

The Plane Truss shown in Figure Q1 is composed of members having a square \( 15 \mathrm{~mm} \times 15 \) \( \mathrm{mm} \) cross section and modulus of elasticity, \( E=X X . X \) GPa. Analyse the axial stress in each element using: (a) Finite Element Analysis. (b) Finite Element Simulations and evaluate the error. Take last three digits of your matrix number as the modulus of elasticity, E value. For example, your matrix number is ' 4112037771 ' take the E as \( 77.1 \mathrm{GPa} \).


We have an Answer from Expert

View Expert Answer

Expert Answer


Solution, Given that Cross-section (15 mm x 15mm) Here g use last 3 digit of numbes are xx754 So value of E=75.4 GPa So, I = bd3 / 12 =15*153 /12 =5.0
