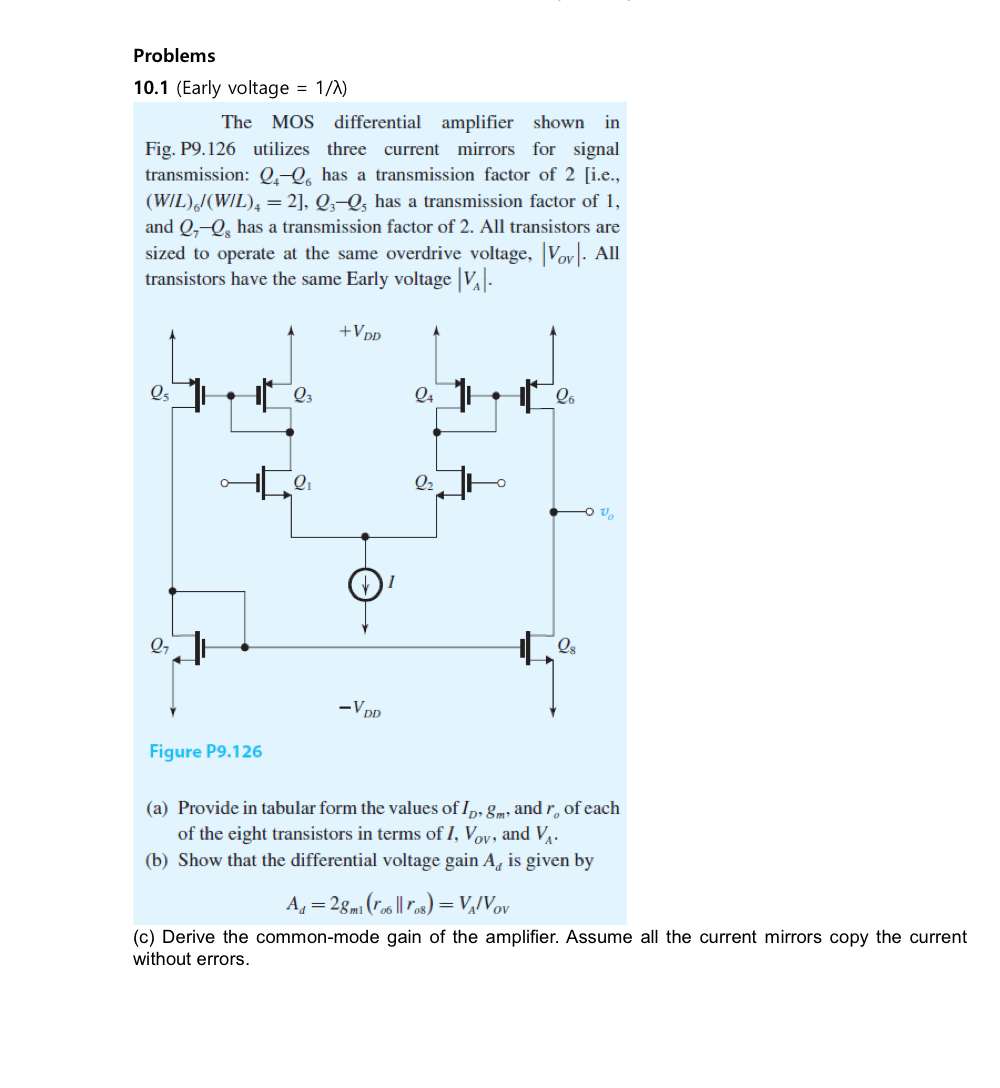

The MOS differential amplifier shown in Fig. P9.126 utilizes three current mirrors for signal transmission: $Q_4?Q_6$ has a transmission factor of 2 [i.e., $(W/L{)}_6/(W/L{)}_4=2$ ], $Q_3?Q_5$ has a transmission factor of 1 , and $Q_7?Q_8$ has a transmission factor of 2. All transistors are sized to operate at the same overdrive voltage, $?V_{OV}?$. All transistors have the same Early voltage $?V_A?$. Figure P9.126 (a) Provide in tabular form the values of $I_D,g_m$, and $r_o$ of each of the eight transistors in terms of $I,V_{OV}$, and $V_A$. (b) Show that the differential voltage gain $A_d$ is given by $A_d=2g_{m1}\left(r_{o6}?r_{o8}\right)=V_A/V_{oV}$ (c) Derive the common-mode gain of the amplifier. Assume all the current mirrors copy the current without errors.
