(Solved): The electrical network shown in Figure has a voltage source of \( 220 \mathrm{~V} \), and the valu ...

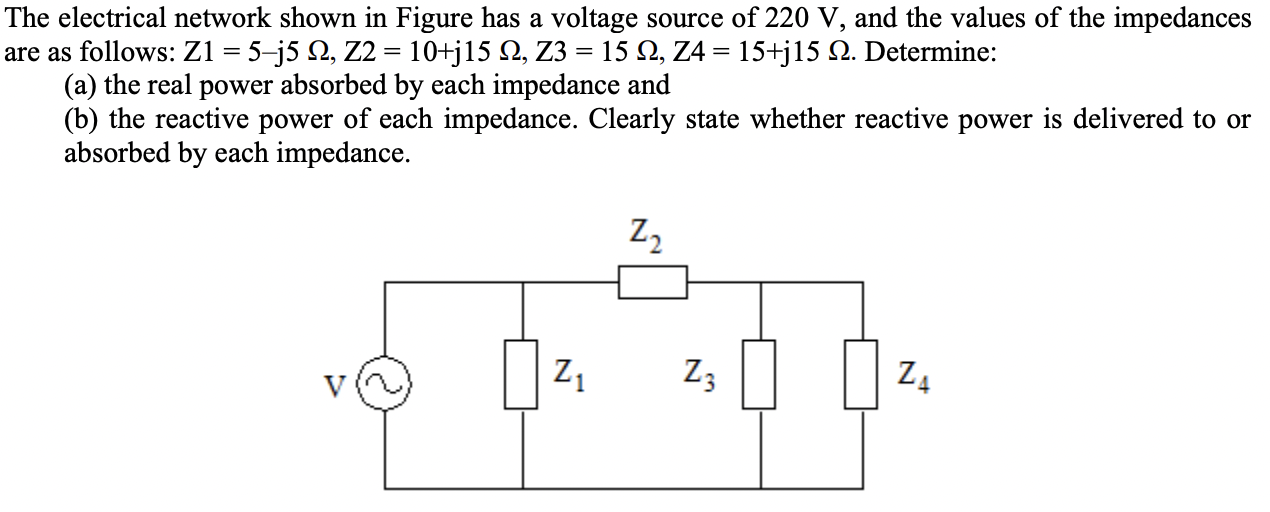

The electrical network shown in Figure has a voltage source of \( 220 \mathrm{~V} \), and the values of the impedances are as follows: \( \mathrm{Z} 1=5-\mathrm{j} 5 \Omega, \mathrm{Z} 2=10+\mathrm{j} 15 \Omega, \mathrm{Z} 3=15 \Omega, \mathrm{Z} 4=15+\mathrm{j} 15 \Omega \). Determine: (a) the real power absorbed by each impedance and (b) the reactive power of each impedance. Clearly state whether reactive power is delivered to or absorbed by each impedance.
