(Solved): The edge-triggered S-R flip-flop is shown in Figure 3. If the inputs are as shown, draw the Q outpu ...

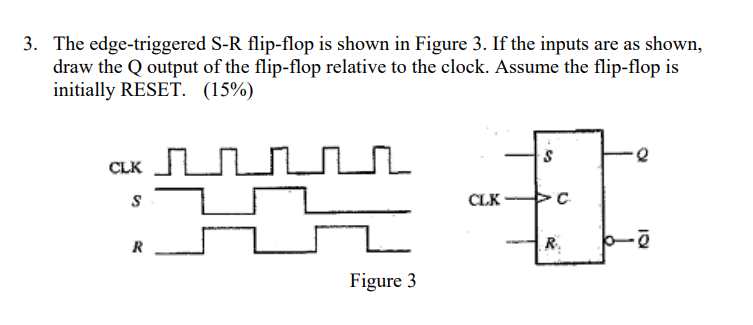

The edge-triggered S-R flip-flop is shown in Figure 3. If the inputs are as shown, draw the output of the flip-flop relative to the clock. Assume the flip-flop is initially RESET. (15\%)
