(Solved): The diagram below represents the Christmas-tree-like structure of active transcription observed by ...

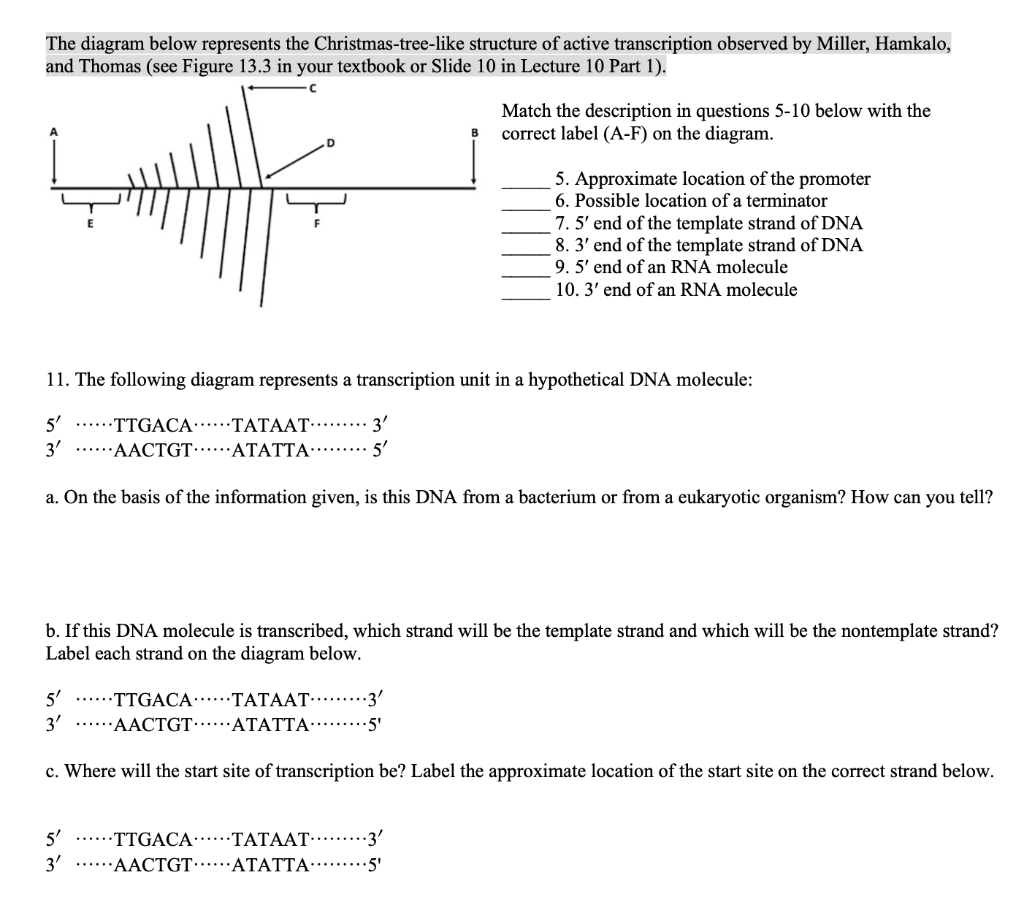

The diagram below represents the Christmas-tree-like structure of active transcription observed by Miller, Hamkalo, and Thomas (see Figure 13.3 in your textbook or Slide 10 in Lecture 10 Part 1). Match the description in questions 5-10 below with the correct label (A-F) on the diagram. 5. Approximate location of the promoter 6. Possible location of a terminator 11. The following diagram represents a transcription unit in a hypothetical DNA molecule: 5' TTGACA TATAAT.. 3' 3' AACTGT ATATTA 5' a. On the basis of the information given, is this DNA from a bacterium or from a eukaryotic organism? How can you tell? 5' 3' 7. 5' end of the template strand of DNA 8. 3' end of the template strand of DNA 9. 5' end of an RNA molecule 10. 3' end of an RNA molecule b. If this DNA molecule is transcribed, which strand will be the template strand and which will be the nontemplate strand? Label each strand on the diagram below. TTGACA TATAAT 3' AACTGT ATATTA ·5' TTGACA TATAAT 3' 5' 3' AACTGT ATATTA.. .5' c. Where will the start site of transcription be? Label the approximate location of the start site on the correct strand below.
