(Solved): The crank-shaft slider shown has two possible circuit configurations (open and crossed). Consider ...

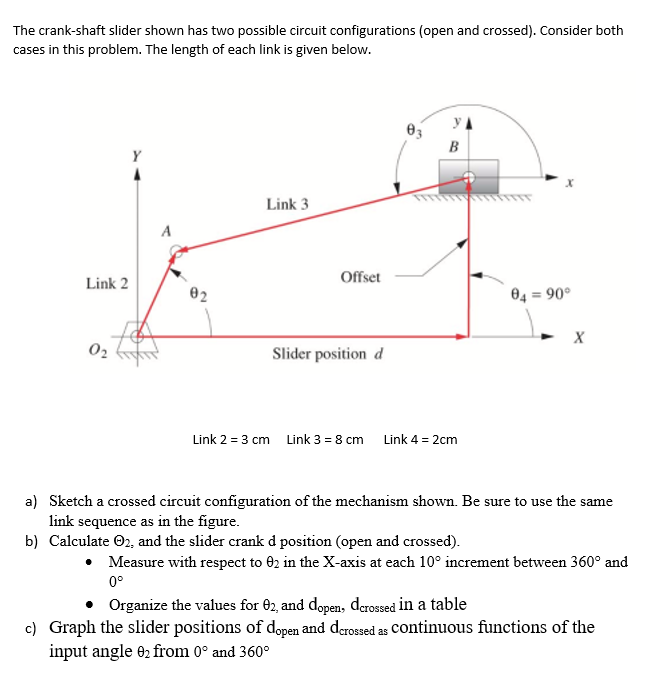

The crank-shaft slider shown has two possible circuit configurations (open and crossed). Consider both cases in this problem. The length of each link is given below. Link 2 0? 02 Link 3 Link 2 = 3 cm Offset Slider position d 03 B Link 3 = 8 cm Link 4 = 2cm 04 = 90° X a) Sketch a crossed circuit configuration of the mechanism shown. Be sure to use the same link sequence as in the figure. b) Calculate ?2, and the slider crank d position (open and crossed). Measure with respect to 02 in the X-axis at each 10° increment between 360° and 0° Organize the values for 02, and dopen, dcrossed in a table c) Graph the slider positions of dopen and dcrossed as continuous functions of the input angle 02 from 0° and 360°
