(Solved): The beam is constructed using 2 boards and 3 rows of nails spaced equally. A shear force is applied ...

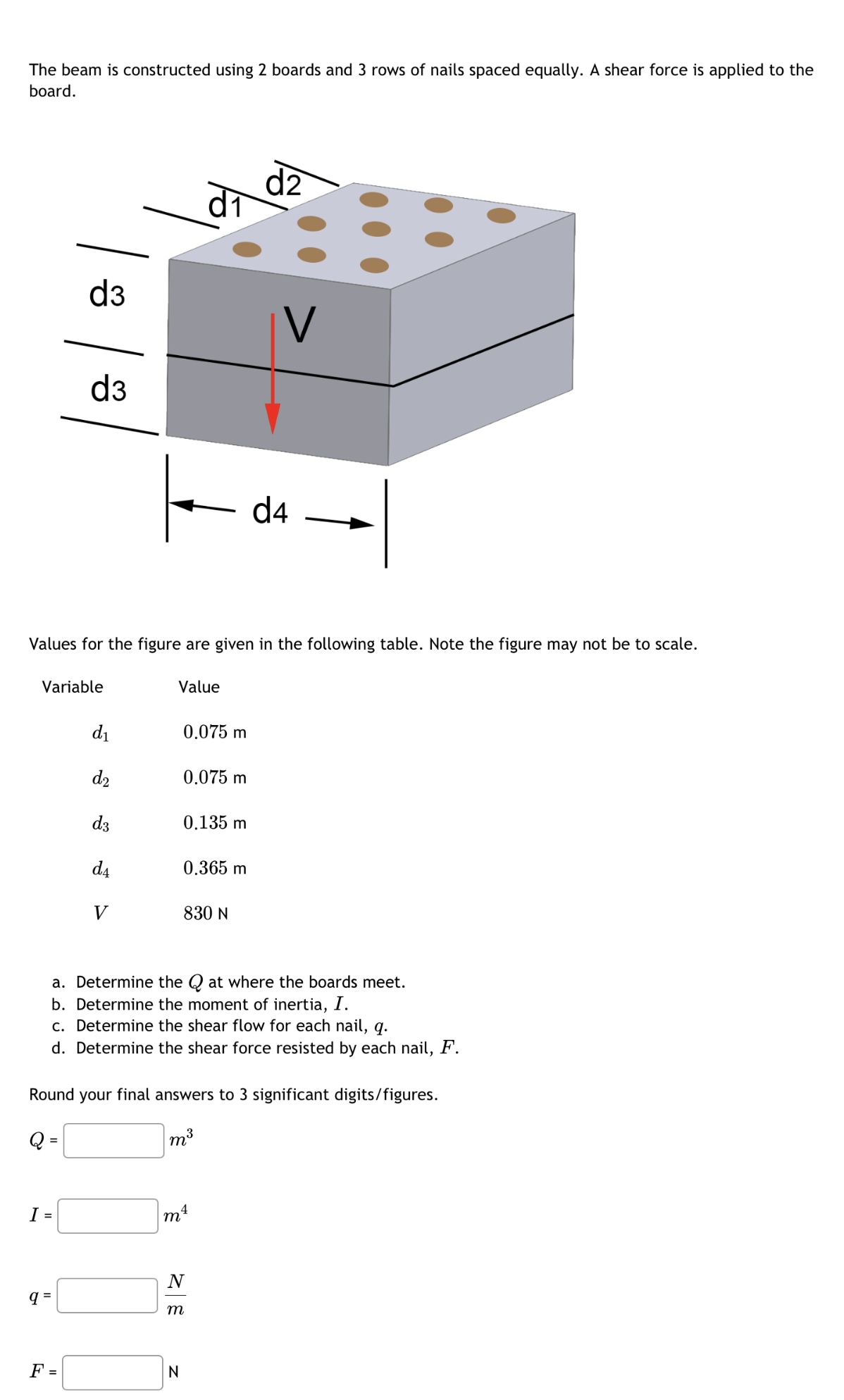

The beam is constructed using 2 boards and 3 rows of nails spaced equally. A shear force is applied to the board. Values for the figure are given in the following table. Note the figure may not be to scale. a. Determine the $Q$ at where the boards meet. b. Determine the moment of inertia, $I$. c. Determine the shear flow for each nail, $q$. d. Determine the shear force resisted by each nail, $F$.
