(Solved): Suppose we want to develop a finite-state machine system for a cross-road traffic- light system. Eac ...

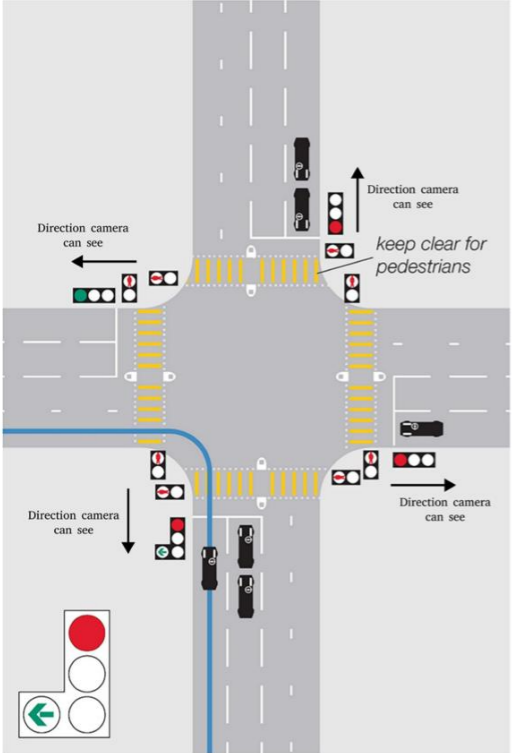

Suppose we want to develop a finite-state machine system for a cross-road traffic- light system. Each traffic light is equipped with a camera system that can detect each incoming road direction and produce a number that indicates the number of cars waiting up to a distance of 50 m. Each camera can only see its incoming direction, which means that it cannot see other traffic lights. In addition, there were pedestrian buttons in each traffic light. This pedestrian signal can only interrupt the system manually by predestrians when pressing the button. Design a finite-state machine graph and show all the transitions and inputs that make this transition occur. In addition, a state-transition table must be provided. If you make any assumptions, please indicate the top of your report. make the design for 2 roads and 2 cameras i need clear drawing and explanation.
