(Solved): S. Calculate elastic moment, plastic moment and shape factor for the inverted T-section shown in Fig ...

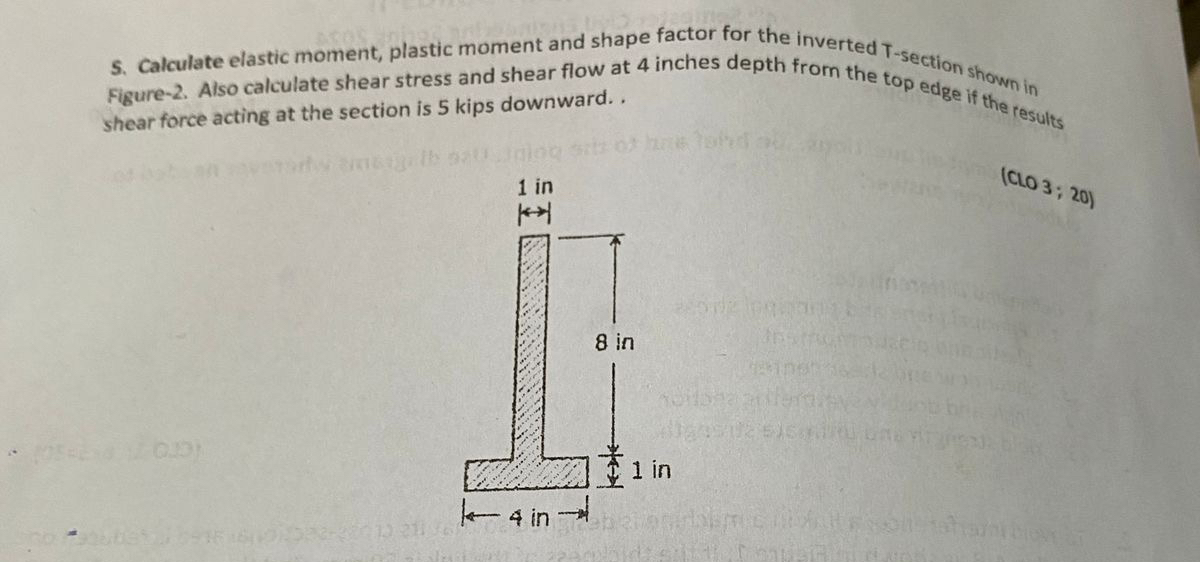

S. Calculate elastic moment, plastic moment and shape factor for the inverted T-section shown in Figure-2. Also calculate shear stress and shear flow at 4 inches depth from the top edge if the results shear force acting at the section is 5 kips downward. shear force acting at the section is 5 kips downward. .
