(Solved): Required information Problem 12.061 - Particle kinetics, curvilinear motion, normal and tangential ...

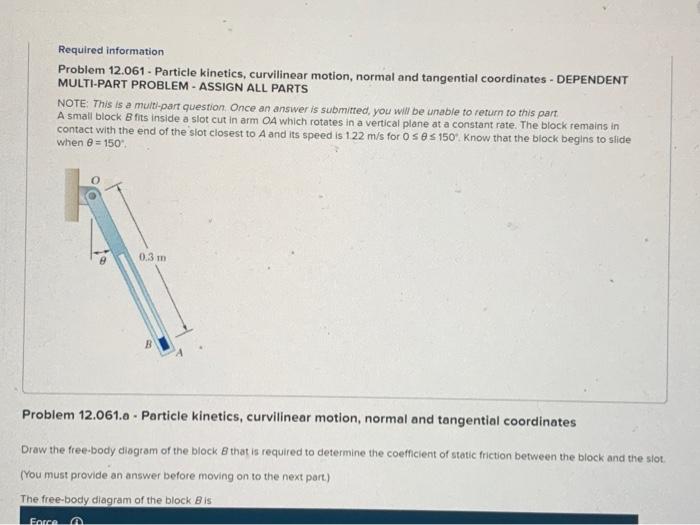

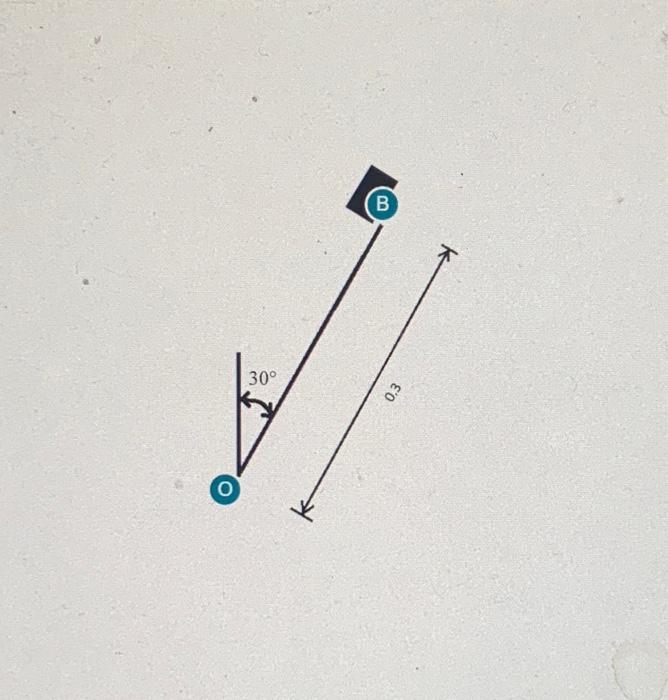

Required information Problem 12.061 - Particle kinetics, curvilinear motion, normal and tangential coordinates - DEPENDENT MULTI-PART PROBLEM - ASSIGN ALL PARTS NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A small block \( B \) fits inside a slot cut in arm \( O A \) which rotates in a vertical plane at a constant rate. The block remains in contact with the end of the slot closest to \( A \) and its speed is \( 1.22 \mathrm{~m} / \mathrm{s} \) for \( 0 \leq \theta \leq 150^{\circ} \). Know that the block begins to slide when \( \theta=150^{\circ} \). Problem 12.061.a - Particle kinetics, curvilinear motion, normal and tangential coordinates Draw the free-body diogram of the block \( B \) that is required to determine the coefficient of static friction between the block and the siot. (You must provide an answer before moving on to the next part) The free-body diagram of the block \( B \) is
