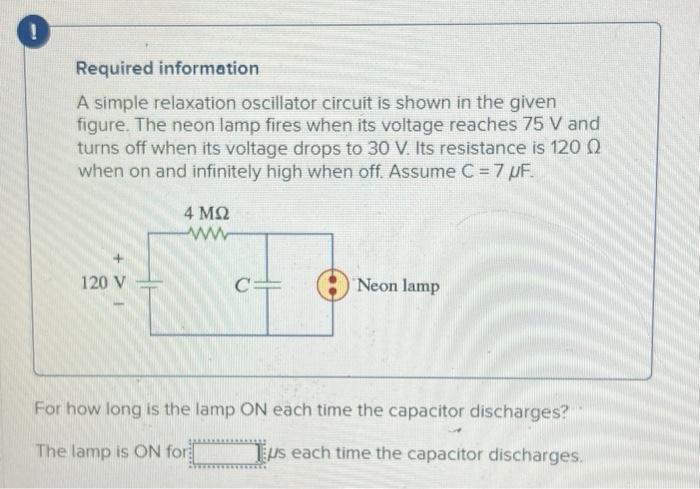

Required information A simple relaxation oscillator circuit is shown in the given figure. The neon lamp fires when its voltage reaches $75 V$ and turns off when its voltage drops to $30 V$ . Its resistance is $120?$ when on and infinitely high when off. Assume $C = 7 ? F$ . For how long is the lamp ON each time the capacitor discharges? The tamp is ON for fis each time the capacitor discharges.

Question

Required information A simple relaxation oscillator circuit is shown in the given figure. The neon lamp fires when its voltage reaches

75 V

and turns off when its voltage drops to

30 V

. Its resistance is

120?

when on and infinitely high when off. Assume

C = 7 ? F

. For how long is the lamp ON each time the capacitor discharges? The tamp is ON for fis each time the capacitor discharges.
