(Solved): QUESTION 3 Calculate the magnitude of the voltage at point B(V_(B)) in the following circuit, when t ...

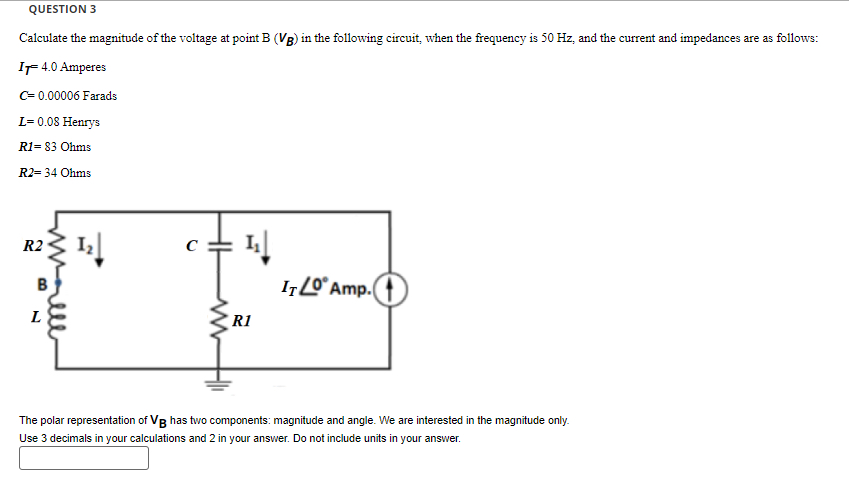

QUESTION 3 Calculate the magnitude of the voltage at point
B(V_(B))in the following circuit, when the frequency is 50 Hz , and the current and impedances are as follows:
I_(T)=4.0Amperes
C=0.00006Farads
L=0.08Henrys
R1=83Ohms
R2=34OhmsThe polar representation of
V_(B)has two components: magnitude and angle. We are interested in the magnitude only. Use 3 decimals in your calculations and 2 in your answer. Do not include units in your answer.
