Question 2-The bode plot of a system was determined experimentally using the sinusoidal wave excitation. Given the Bode plot

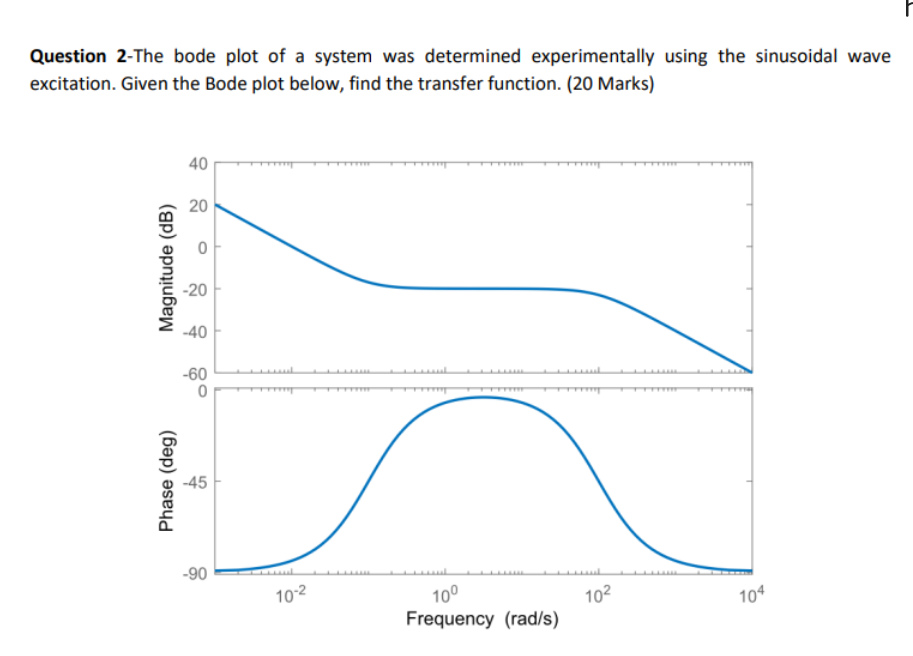

Question 2-The bode plot of a system was determined experimentally using the sinusoidal wave excitation. Given the Bode plot below, find the transfer function. (20 Marks)


We have an Answer from Expert

View Expert Answer

Expert Answer

As we know that for a pole, the magnitude slope will be -20dB/Decade, and for a zero, the slope will be +20dB/Decade. So, from the plot we can obs
