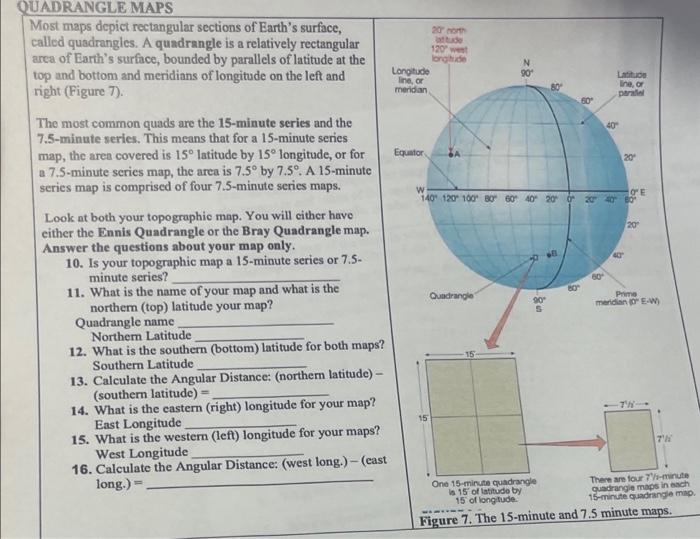

QUADRANGLE MAPS Most maps depict rectangular sections of Earth's surface, called quadrangles. A quadrangle is a relatively rectangular area of Earth's surface, bounded by parallels of latitude at the top and bottom and meridians of longitude on the left and right (Figure 7). The most common quads are the 15-minute series and the 7.5-minute series. This means that for a 15-minute series map, the area covered is 15° latitude by 15° longitude, or for a 7.5-minute series map, the area is 7.5° by 7.5°. A 15-minute series map is comprised of four 7.5-minute series maps. Look at both your topographic map. You will either have either the Ennis Quadrangle or the Bray Quadrangle map. Answer the questions about your map only. 10. Is your topographic map a 15-minute series or 7.5- minute series? 11. What is the name of your map and what is the northern (top) latitude your map? Quadrangle name Northern Latitude 12. What is the southern (bottom) latitude for both maps? Southern Latitude 13. Calculate the Angular Distance: (northern latitude) - (southern latitude) 14. What is the eastern (right) longitude for your map? East Longitude 15. What is the western (left) longitude for your maps? West Longitude 16. Calculate the Angular Distance: (west long.)-(cast long.) Longitude line, or meridian Equator 20 north 120" went longitude 15 zg W 140 120 100 80 60 40 20 0 Quadrangle ? - 90° 80 60° 40 Latitude line, or paralel 20 C'E 20 40 80 20 407 60 Prime meridian E-W) TH One 15-minute quadrangle is 15 of latitude by 15 of longitude. There are four 7-minute quadrangle maps in each 15-minute quadrangle map. Figure 7. The 15-minute and 7.5 minute maps.
