(Solved): Q2): A rectangular slab is supported as shown in Fig.2. The slab is subjected to a uniformly distrib ...

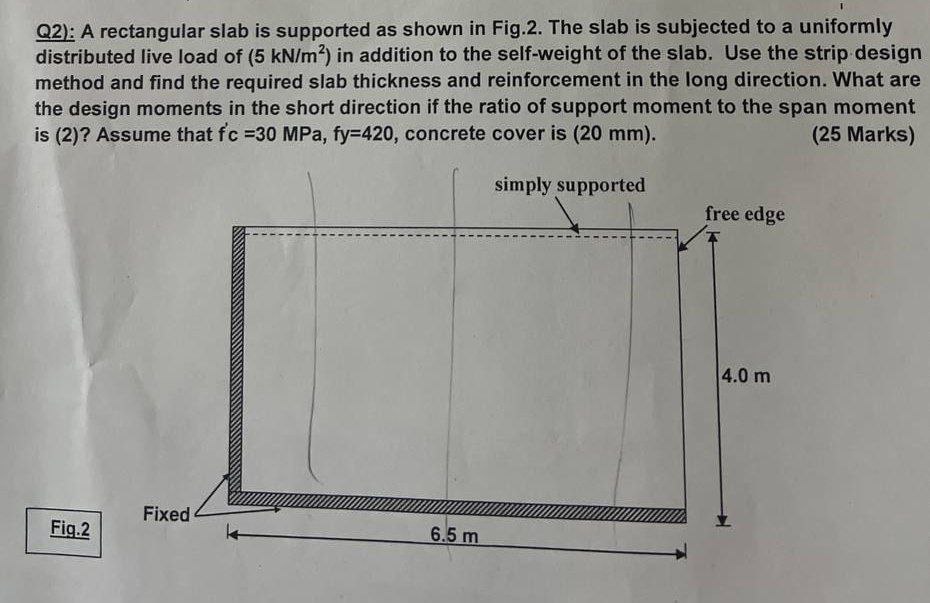

Q2): A rectangular slab is supported as shown in Fig.2. The slab is subjected to a uniformly distributed live load of (5kN//m^(2)) in addition to the self-weight of the slab. Use the strip design method and find the required slab thickness and reinforcement in the long direction. What are the design moments in the short direction if the ratio of support moment to the span moment is (2)? Assume that f^(')c=30MPa,fy=420, concrete cover is (20mm). (25 Marks) Fig.2
