(Solved): Q) A fully-controlled three - phase halfwave rectifier circut is modified by placing a commutating ...

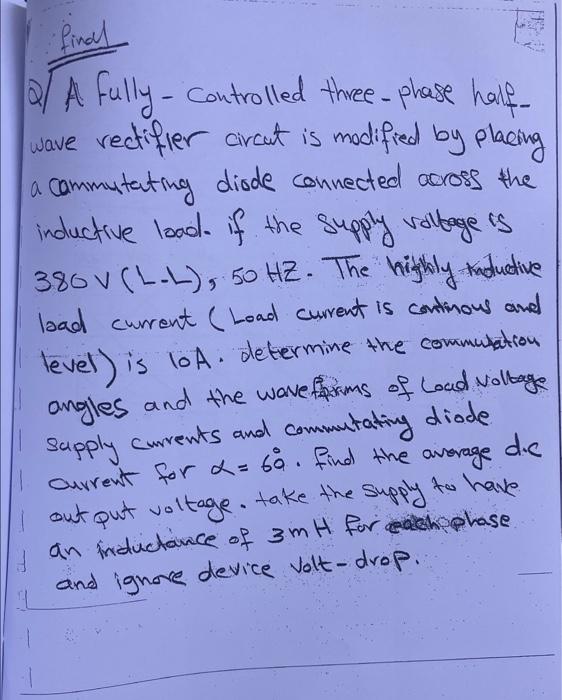

Q) A fully-controlled three - phase halfwave rectifier circut is modified by placing a commutating diode connected across the inductive load. if the Supply valbage is \( 380 \mathrm{~V}(\mathrm{~L}-L), 50 \mathrm{HZ} \). The highly *uductive laad current (Load current is continous and level) is \( 10 A \). determine the communation angles and the wave foxms of Load voltage supply currents and commutating diode ourrent for \( \alpha=60^{\circ} \). Find the avorage dic out qut voltage - take the suppy to have an inductance of \( 3 \mathrm{mH} \) for eadihephase and ignore device volt-drop.
