(Solved): Purpose: Master basic orthographic views; Select appropriate scale; Organize drawings on a sheet; ...

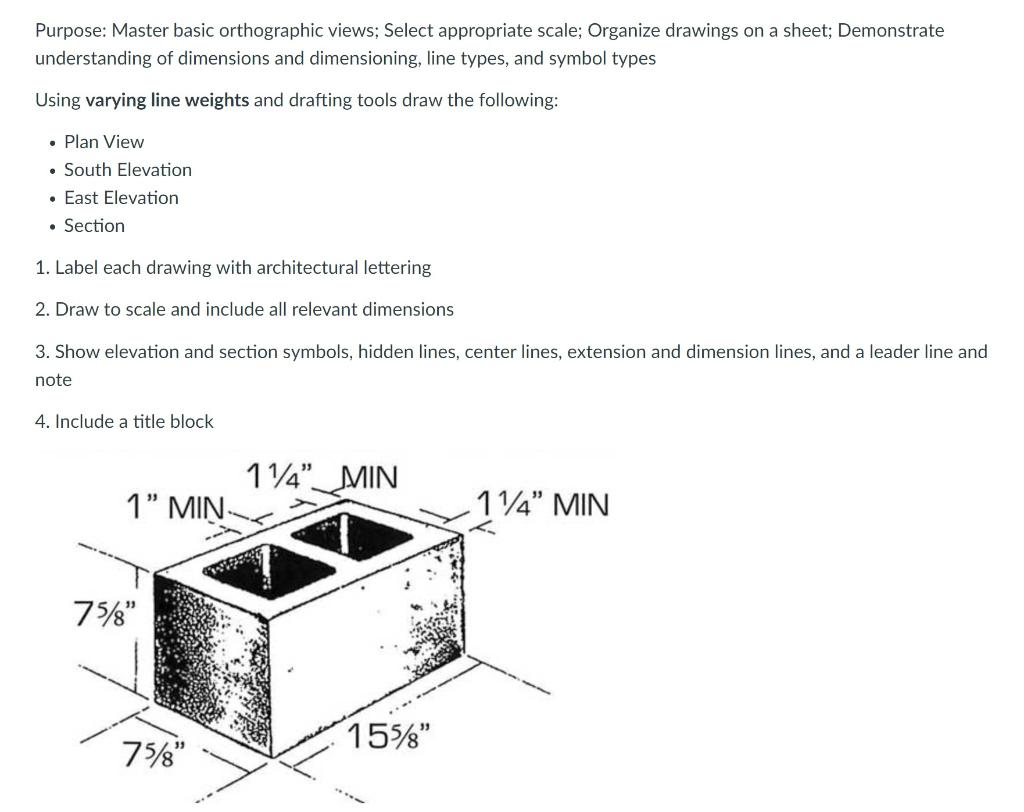

Purpose: Master basic orthographic views; Select appropriate scale; Organize drawings on a sheet; Demonstrate understanding of dimensions and dimensioning, line types, and symbol types Using varying line weights and drafting tools draw the following: - Plan View - South Elevation - East Elevation - Section 1. Label each drawing with architectural lettering 2. Draw to scale and include all relevant dimensions 3. Show elevation and section symbols, hidden lines, center lines, extension and dimension lines, and a leader line and note 4. Include a title block
