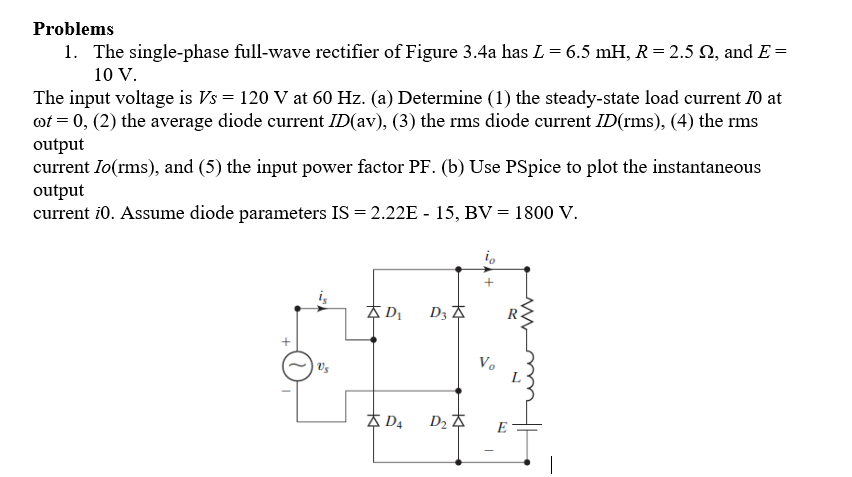

Problems 1. The single-phase full-wave rectifier of Figure \( 3.4 \) a has \( L=6.5 \mathrm{mH}, R=2.5 \Omega \), and \( E= \) \( 10 \mathrm{~V} \). The input voltage is \( V_{S}=120 \mathrm{~V} \) at \( 60 \mathrm{~Hz} \). (a) Determine (1) the steady-state load current \( I 0 \) at \( \omega t=0 \), (2) the average diode current \( I D( \) av), (3) the rms diode current \( I D(\mathrm{rms}) \), (4) the rms output current Io(rms), and (5) the input power factor PF. (b) Use PSpice to plot the instantaneous output current \( i 0 \). Assume diode parameters IS \( =2.22 \mathrm{E}-15, \mathrm{BV}=1800 \mathrm{~V} \).
