(Solved): Problem: A vessel in the figure as shown has an orifice on its side with a diameter of 5 cm. If th ...

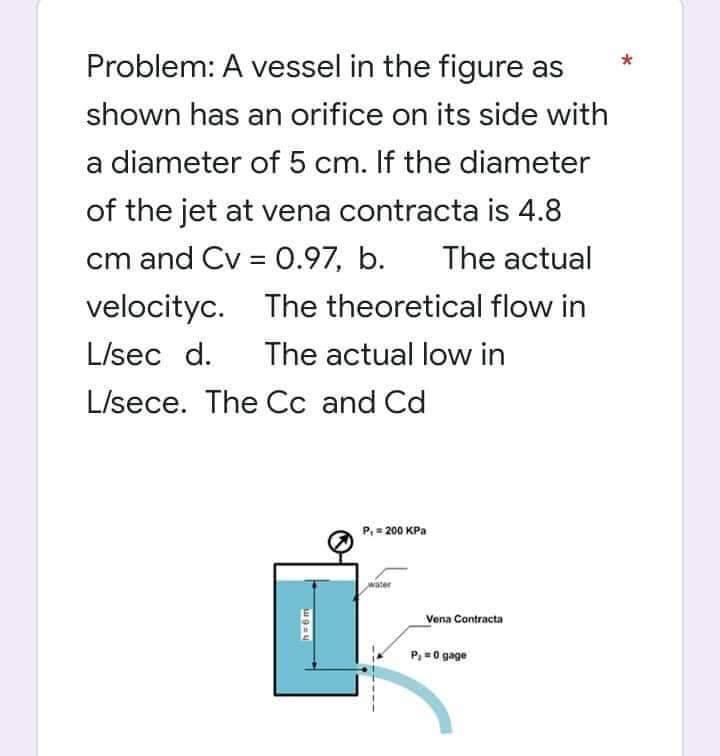

Problem: A vessel in the figure as shown has an orifice on its side with a diameter of 5 cm. If the diameter of the jet at vena contracta is 4.8 cm and Cv = 0.97, b. The actual velocityc. The theoretical flow in L/sec d. The actual low in L/sece. The Cc and Cd P? = 200 kPa Vena Contracta P? = 0 gage
