(Solved): Problem 5 12pts The above logic circuit is composed of two logic gates and a multiplexer with the f ...

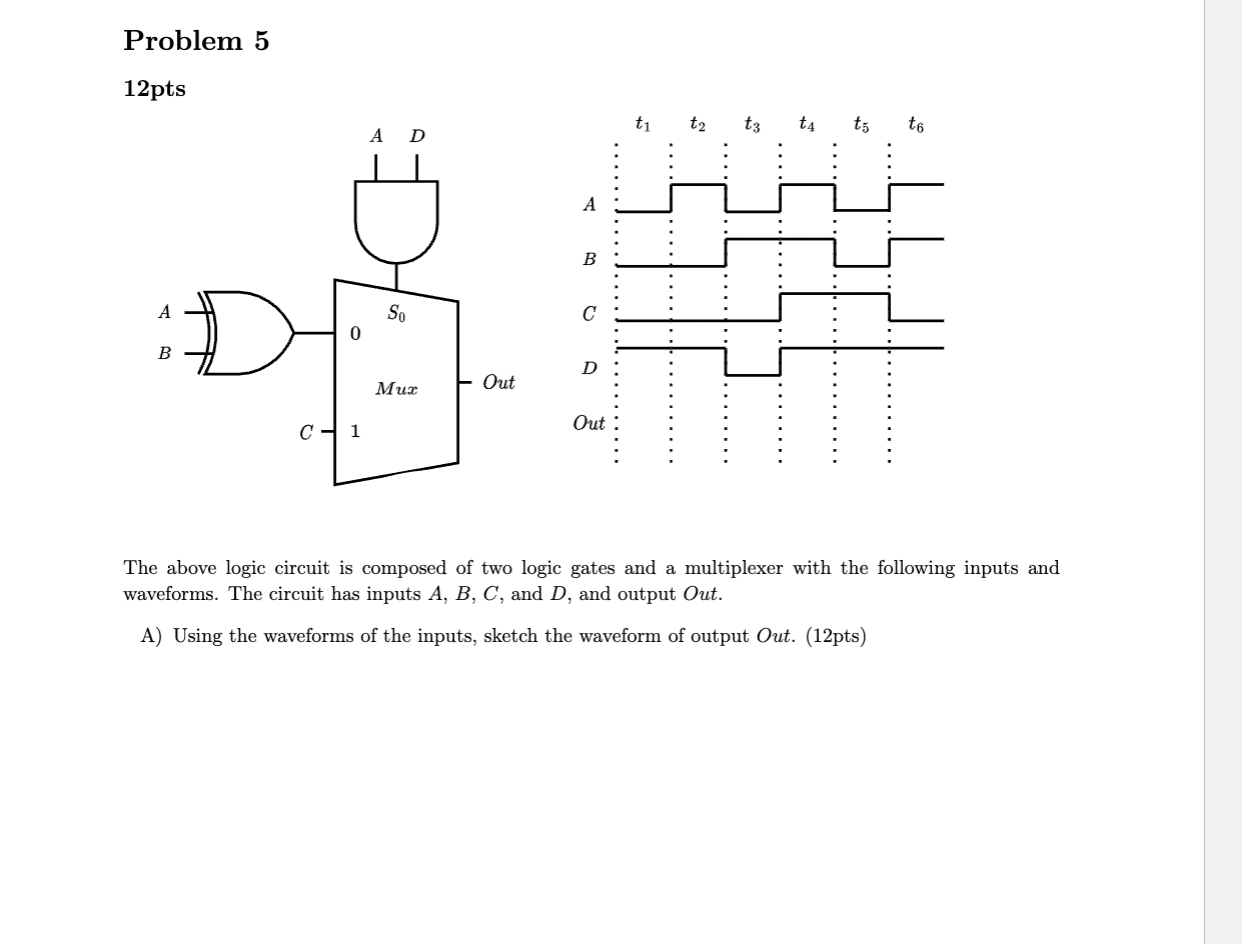

Problem 5 12pts The above logic circuit is composed of two logic gates and a multiplexer with the following inputs and waveforms. The circuit has inputs $A,B,C$, and $D$, and output Out. A) Using the waveforms of the inputs, sketch the waveform of output Out. (12pts)
