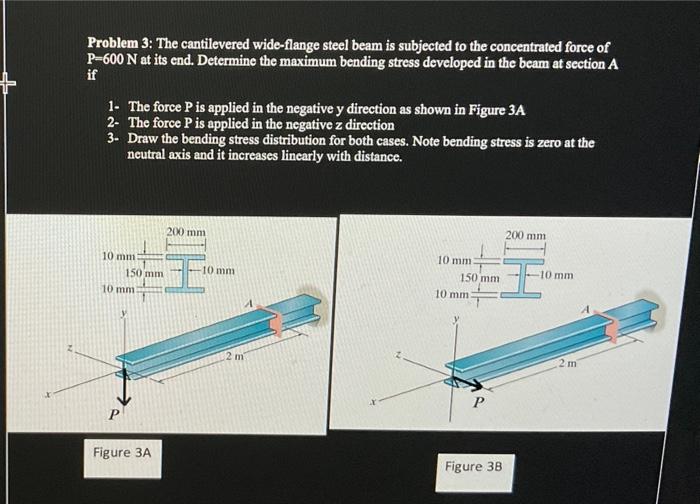

Problem 3: The cantilevered wide-flange steel beam is subjected to the concentrated force of P-600 N at its end. Determine the maximum bending stress developed in the beam at section A if 1- The force P is applied in the negative y direction as shown in Figure 3A 2- The force P is applied in the negative z direction 3- Draw the bending stress distribution for both cases. Note bending stress is zero at the neutral axis and it increases linearly with distance. 200 mm 200 mm 10 mm. 10 mm 10 mm: 10 mm. P Figure 3A 150 mm -10 mm 2 m 150 mm P Figure 38 -10 mm 2 m
