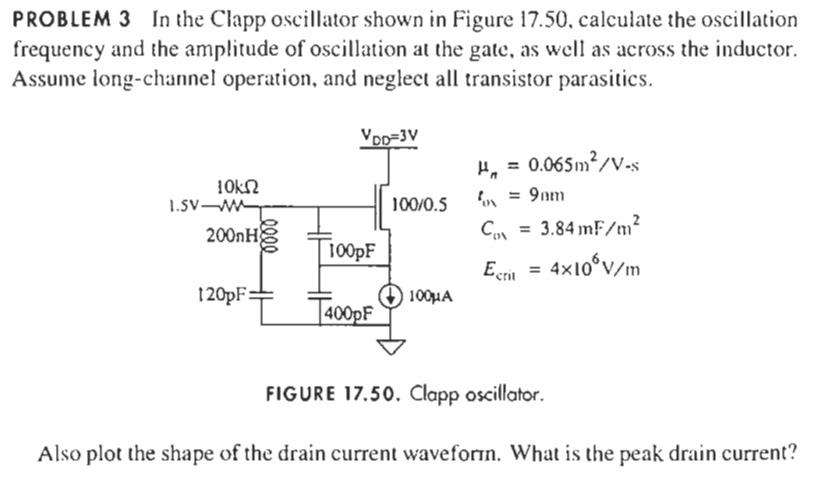

PROBLEM 3 In the Clapp oscillator shown in Figure 17.50, calculate the oscillation frequency and the amplitude of oscillation at the gate, as well as across the inductor. Assume long-channel operation, and neglect all transistor parasitics. \[ \begin{array}{l} \mu_{n}=0.065 \mathrm{~m}^{2} / \mathrm{V} \cdot \mathrm{s} \\ t_{0}=9 \mathrm{~nm} \\ C_{\mathrm{n}}=3.84 \mathrm{mF} / \mathrm{m}^{2} \\ E_{\mathrm{crit}}=4 \times 10^{6} \mathrm{~V} / \mathrm{m} \end{array} \] FIGURE 17.50. Clapp oscillator. Also plot the shape of the drain current waveforn. What is the peak drain current?
