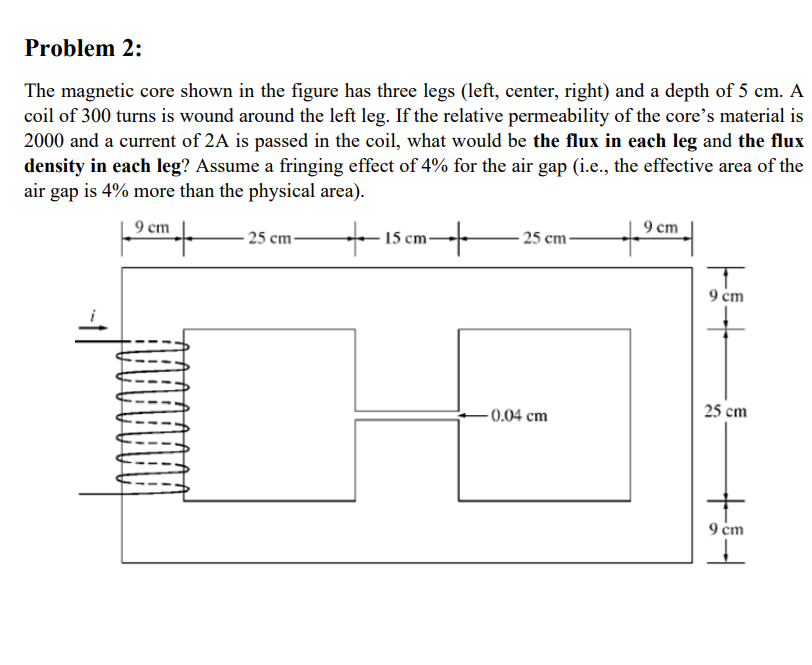

Problem 2: The magnetic core shown in the figure has three legs (left, center, right) and a depth of 5 cm. A coil of 300 turns is wound around the left leg. If the relative permeability of the core's material is 2000 and a current of 2A is passed in the coil, what would be the flux in each leg and the flux density in each leg? Assume a fringing effect of 4% for the air gap (i.e., the effective area of the air gap is 4% more than the physical area). 9 cm 9 cm + 25 cm- m+ 25 cm- + T 9 cm 25 cm 15 cm- -0.04 cm tšt 9 cm
