(Solved): please follow grading rubic For the simply supported beam compute the support reactions at A and ...

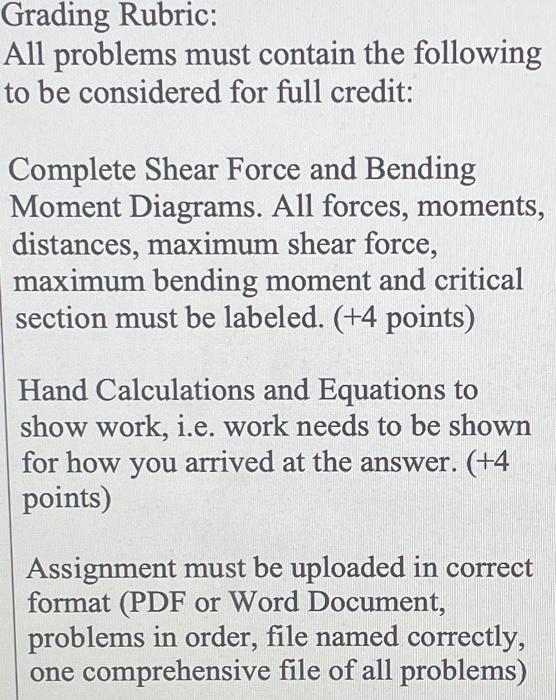

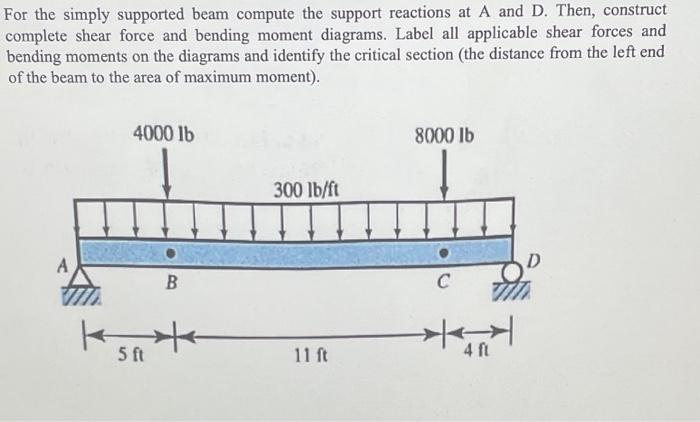

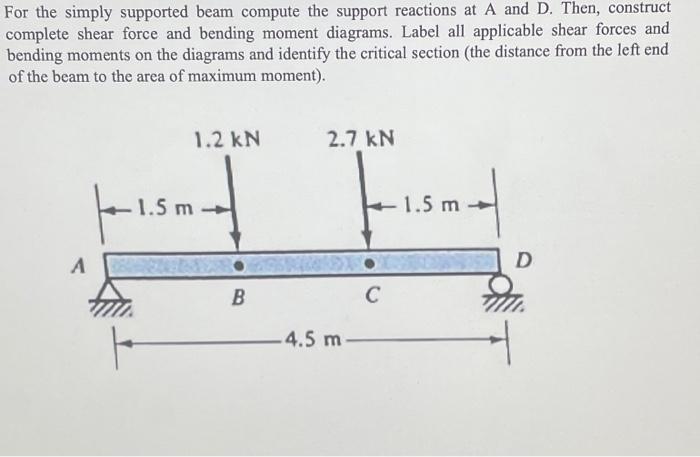

For the simply supported beam compute the support reactions at A and D. Then, construct complete shear force and bending moment diagrams. Label all applicable shear forces and bending moments on the diagrams and identify the critical section (the distance from the left end of the beam to the area of maximum moment). Grading Rubric: All problems must contain the following to be considered for full credit: Complete Shear Force and Bending Moment Diagrams. All forces, moments, distances, maximum shear force, maximum bending moment and critical section must be labeled. ( +4 points) Hand Calculations and Equations to show work, i.e. work needs to be shown for how you arrived at the answer. (+4 points) Assignment must be uploaded in correct format (PDF or Word Document, problems in order, file named correctly, one comprehensive file of all problems) For the beam with the overhang compute the support reactions at $\mathrm{A}$ and $\mathrm{C}$. Then, construct complete shear force and bending moment diagrams. Label all applicable shear forces and bending moments on the diagrams and identify the critical section (the distance from the left end of the beam to the area of maximum moment). For the simply supported beam compute the support reactions at A and D. Then, construct complete shear force and bending moment diagrams. Label all applicable shear forces and bending moments on the diagrams and identify the critical section (the distance from the left end of the beam to the area of maximum moment).
