(Solved): Please explain how to draw the diagram. Thank you. Required information NOTE: This is a multi-part q ...

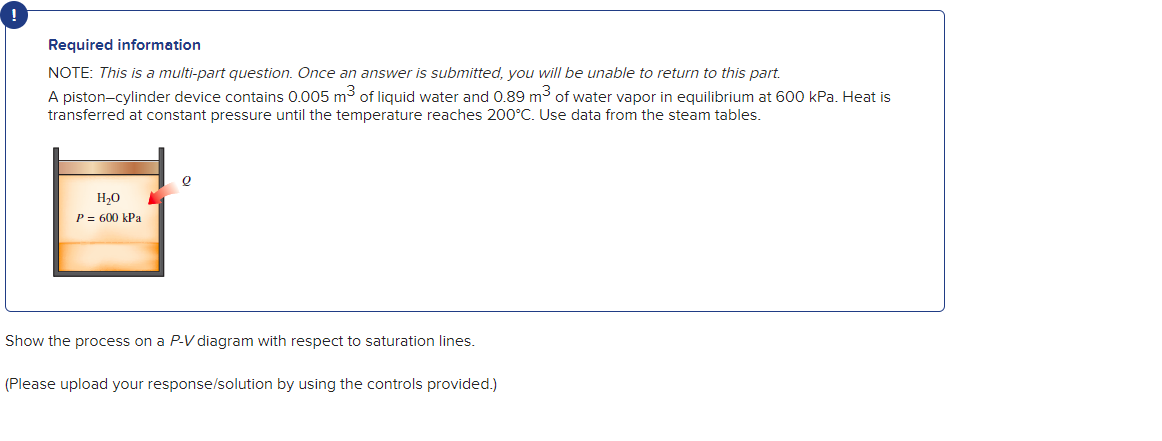

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A piston-cylinder device contains $0.005{\mathrm{m}}^3$ of liquid water and $0.89{\mathrm{m}}^3$ of water vapor in equilibrium at $600\mathrm{kPa}$. Heat is transferred at constant pressure until the temperature reaches $200^{?}\mathrm{C}$. Use data from the steam tables. Show the process on a $P$-V diagram with respect to saturation lines. (Please upload your response/solution by using the controls provided.)
