(Solved): P3-6. Draw a ladder diagram that will cause the output, alarm lamp ALRM 534, to be \( 0 \mathrm{~N} ...

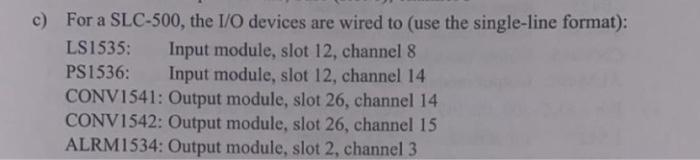

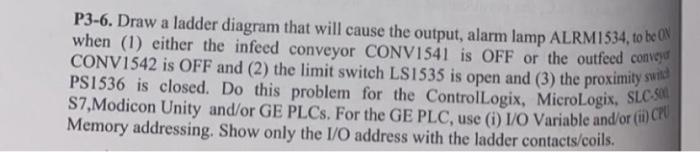

P3-6. Draw a ladder diagram that will cause the output, alarm lamp ALRM 534, to be \( 0 \mathrm{~N} \) when (1) either the infeed conveyor CONV1541 is OFF or the outfeed conngo CONV1542 is OFF and (2) the limit switch LS1535 is open and (3) the proximity suid PS1536 is closed. Do this problem for the ControlLogix, MicroLogix, SLCSMA S7,Modicon Unity and/or GE PLCs. For the GE PLC, use (i) I/O Variable and/or (ii) \( (+1) \) Memory addressing. Show only the I/O address with the ladder contacts/coils. c) For a SLC-500, the I/O devices are wired to (use the single-line format): LS1535: Input module, slot 12, channel 8 PS1536: Input module, slot 12 , channel 14 CONV1541: Output module, slot 26, channel 14 CONV1542: Output module, slot 26, channel 15 ALRM1534: Output module, slot 2, channel 3
