(Solved): Ouestion 1: The elements of the Jacobian matrix in the Newton-Raphson method for the solution of th ...

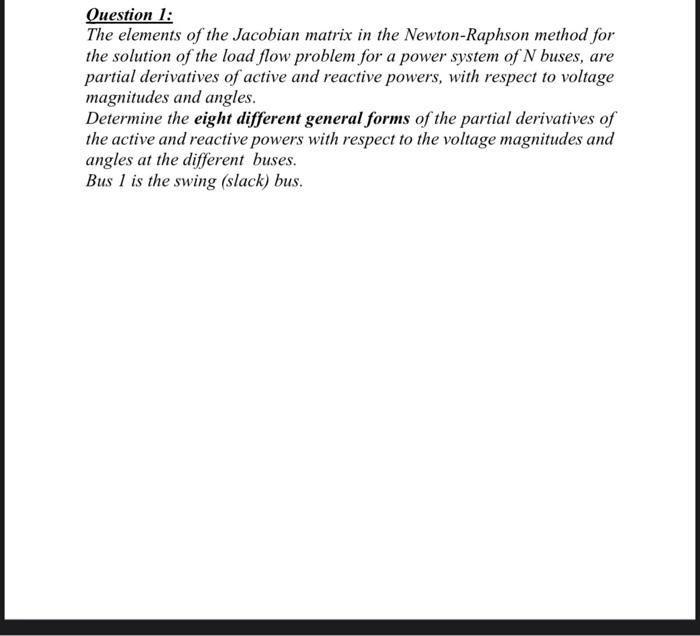

Ouestion 1: The elements of the Jacobian matrix in the Newton-Raphson method for the solution of the load flow problem for a power system of buses, are partial derivatives of active and reactive powers, with respect to voltage magnitudes and angles. Determine the eight different general forms of the partial derivatives of the active and reactive powers with respect to the voltage magnitudes and angles at the different buses. Bus 1 is the swing (slack) bus.
Expert Answer
Jacobian matrix in the Newton-Raphson method contains partial derivatives of active and reactive powers with respect to voltage magnitudes and angles.The Jacobian matrix is a matrix of partial derivatives that describes the rate of change of a set of equations with respect to a set of variables. In the context of power system analysis, the Jacobian matrix is used to solve the load flow problem, which involves determining the voltage magnitudes and angles at all buses in the system given the network topology and the active and reactive power injections at each bus.
