(Solved):   The figure shows an anvil for an impact hammer held in a fixture by a circular pin. If th ...

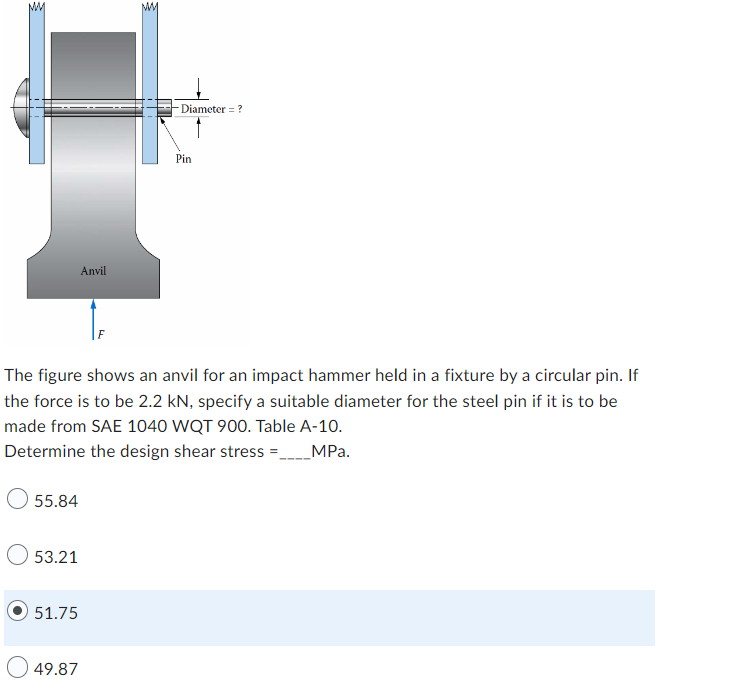

The figure shows an anvil for an impact hammer held in a fixture by a circular pin. If the force is to be \( 2.2 \mathrm{kN} \), specify a suitable diameter for the steel pin if it is to be made from SAE 1040 WQT 900. Table A-10. Determine the design shear stress \( = \) MPa. \( 55.84 \) \( 53.21 \) \( 51.75 \) \( 49.87 \) The figure shows an anvil for an impact hammer held in a fixture by a circular pin. If the force is to be \( 2.2 \mathrm{kN} \), specify a suitable diameter for the steel pin if it is to be made from SAE 1040 WQT 900. Table A-10. Determine the required shear area \( =\mathrm{mm}^{2} \). \( 41.85 \) \( 42.51 \) \( 38.54 \) \( 39.17 \) The figure shows an anvil for an impact hammer held in a fixture by a circular pin. If the force is to be \( 2.2 \mathrm{kN} \), specify a suitable diameter for the steel pin if it is to be made from SAE 1040 WQT 900. Table A-10. Determine the required pin diameter \( =\mathrm{mm} \). \( 5.2 \) \( 4.8 \) \( 4.5 \) \( 4.7 \)
