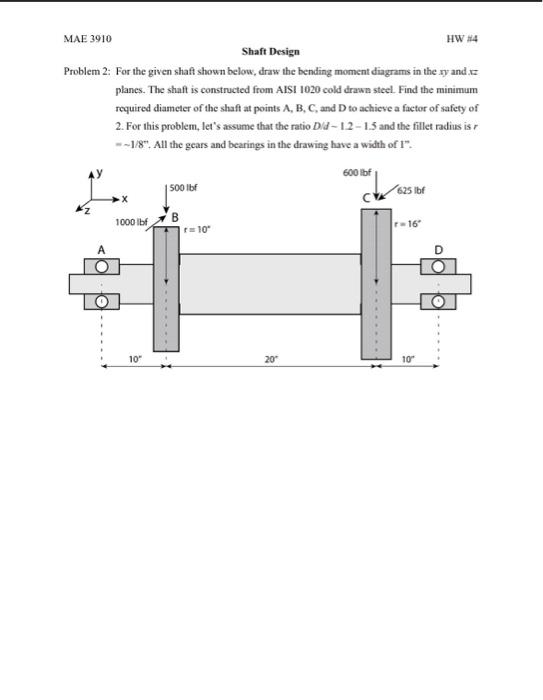

MAE 3910 Shaft Design Problem 2: For the given shaft shown below, draw the bending moment diagrams in the $x y$ and $x z$ planes. The shaft is constructed from AISI 1020 cold drawn steel. Find the minimum required diameter of the shaft at points $A, B, C$ , and $D$ to achieve a factor of safety of 2. For this problem, let's assume that the ratio $D / d ? 1.2 ? 1.5$ and the fillet radius is $r$ $=? 1/ 8^{n +}$ . All the gears and bearings in the drawing have a width of $I^{m}$ .

Question

MAE 3910 Shaft Design Problem 2: For the given shaft shown below, draw the bending moment diagrams in the

x y

and

x z

planes. The shaft is constructed from AISI 1020 cold drawn steel. Find the minimum required diameter of the shaft at points

A, B, C

, and

D

to achieve a factor of safety of 2. For this problem, let's assume that the ratio

D / d ? 1.2 ? 1.5

and the fillet radius is

r

=? 1/ 8^{n +}

. All the gears and bearings in the drawing have a width of

I^{m}

.
