(Solved): LM35 Precision Centigrade Temperature Sensors The LM35 series are precision integrated-circuit tem ...

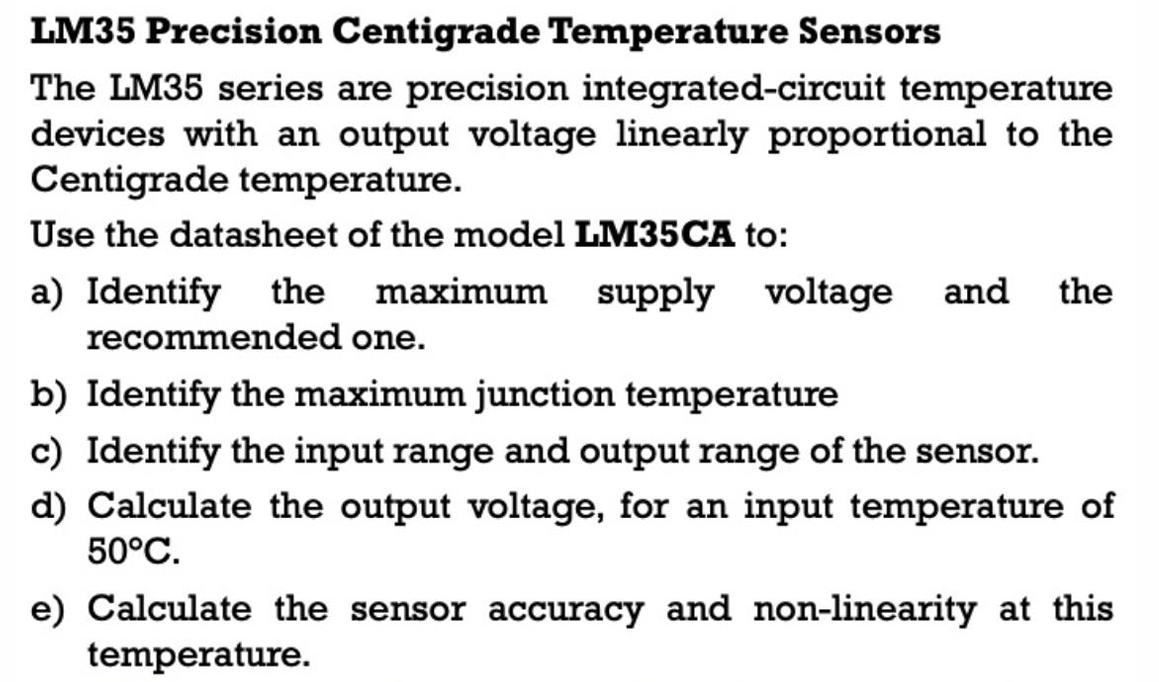

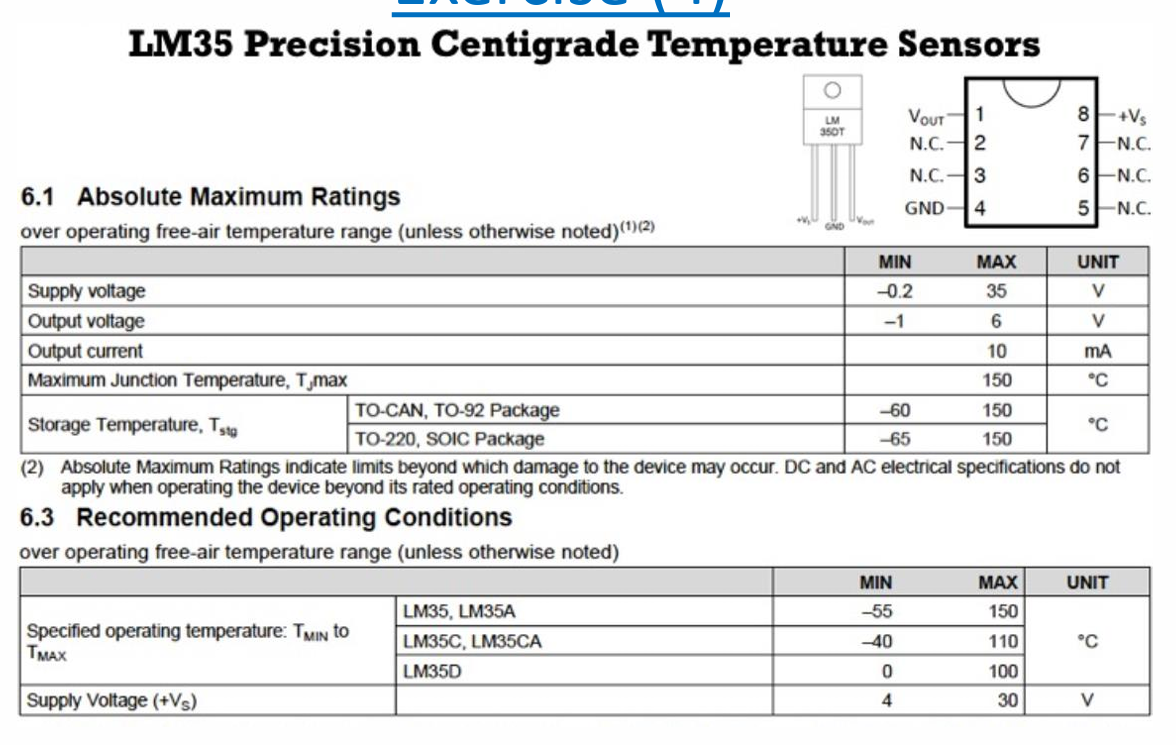

LM35 Precision Centigrade Temperature Sensors The LM35 series are precision integrated-circuit temperature devices with an output voltage linearly proportional to the Centigrade temperature. Use the datasheet of the model LM35CA to: a) Identify the maximum supply voltage and the recommended one. b) Identify the maximum junction temperature c) Identify the input range and output range of the sensor. d) Calculate the output voltage, for an input temperature of $50^{?}\mathrm{C}$. e) Calculate the sensor accuracy and non-linearity at this temperature. LM35 Precision Centigrade Temperature Sensors 6.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) ${}^{(1)(2)}$ (2) Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. DC and AC electrical specifications apply when operating the device beyond its rated operating conditions. 6.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) LM35 Precision Centigrade Temperature Sensors 6.5 Electrical Characteristics: LM35A, LM35CA Limits
