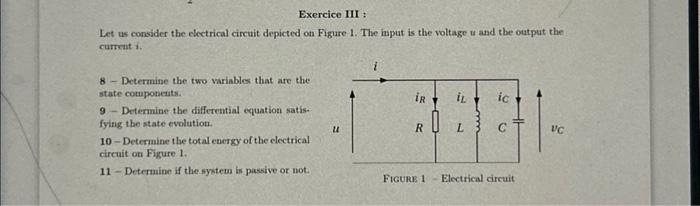

Let us consider the electrical circuit depicted on Figure 1. The input is the voltage ( u ) and the output the current ( i ). 8 - Determine the two variables that are the state components. 9 - Determine the differential equation satisfying the state evolution. 10 - Determine the total energy of the electrical circuit on Figure 1. 11 -Determine if the system is passive or not.

Question

student submitted image, transcription available below

Let us consider the electrical circuit depicted on Figure 1. The imput is the voltage

u

and the output the current i. 8 - Determine the two variables that are the state componeuts. 9 - Determine the differential equation satisfying the state evolution. 10 -Determine the total energy of the electrical circuit on Figure 1. 11 - Determine if the system is passive or not.
