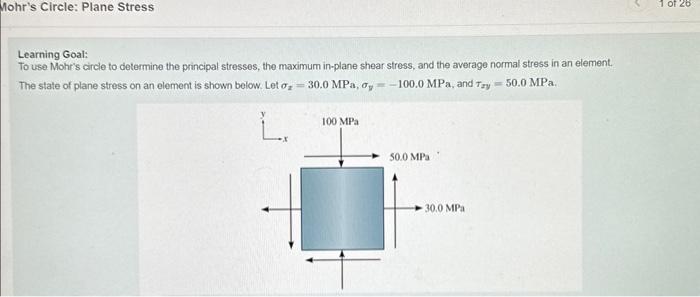

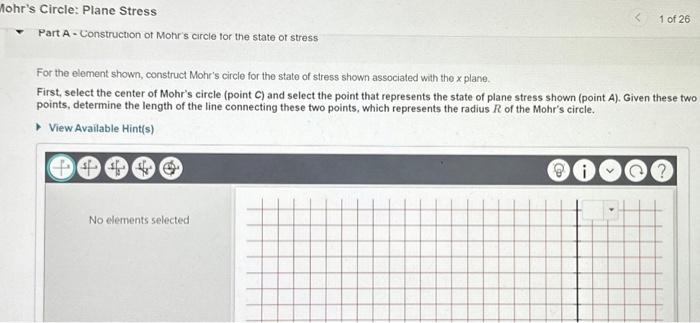

Learning Goal: To use Mohr's circle to determine the principal stresses, the maximum in-plane shear stress, and the average normal stress in an element, The state of plane stress on an element is shown below. Let \\( \\sigma_{z}=30.0 \\mathrm{MPa}, \\sigma_{y}=-100.0 \\mathrm{MPa} \\), and \\( \\tau_{z y}=50.0 \\mathrm{MPa} \\).\r\n\r\nPart A - Construction of Mohr's circle tor the state of stress For the element shown, construct Mohr's circle for the state of stress shown associated with the \\( x \\) plane. First, select the center of Mohr's circle (point \\( C \\) ) and select the point that represents the state of plane stress shown (point \\( A \\) ). Given these two points, determine the length of the line connecting these two points, which represents the radius \\( R \\) of the Mohr's circle. - View Available Hint(s)
