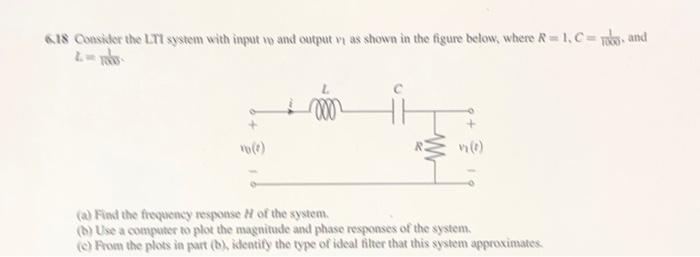

Is Consider the LTI system with input wo and output $v 1$ as shown in the figure below, where $R = 1, C = \frac{1}{100}$ , and $t = \frac{1}{10}$ . (a) Find the frequency response $H$ of the system. (b) Use a computer to plot the magnitude and phase responses of the system. (c) Fom the ploss in part (b), identify the ope of ideal filter that this system approximates.

Question

student submitted image, transcription available below

Is Consider the LTI system with input wo and output

v 1

as shown in the figure below, where

R = 1, C = \frac{1}{100}

, and

t = \frac{1}{10}

. (a) Find the frequency response

H

of the system. (b) Use a computer to plot the magnitude and phase responses of the system. (c) Fom the ploss in part (b), identify the ope of ideal filter that this system approximates.
