In the circuit above, the ammeter \( (\mathrm{A}) \) is an ideal ammeter (so without internal resistance); the voltmeter (V) ???????

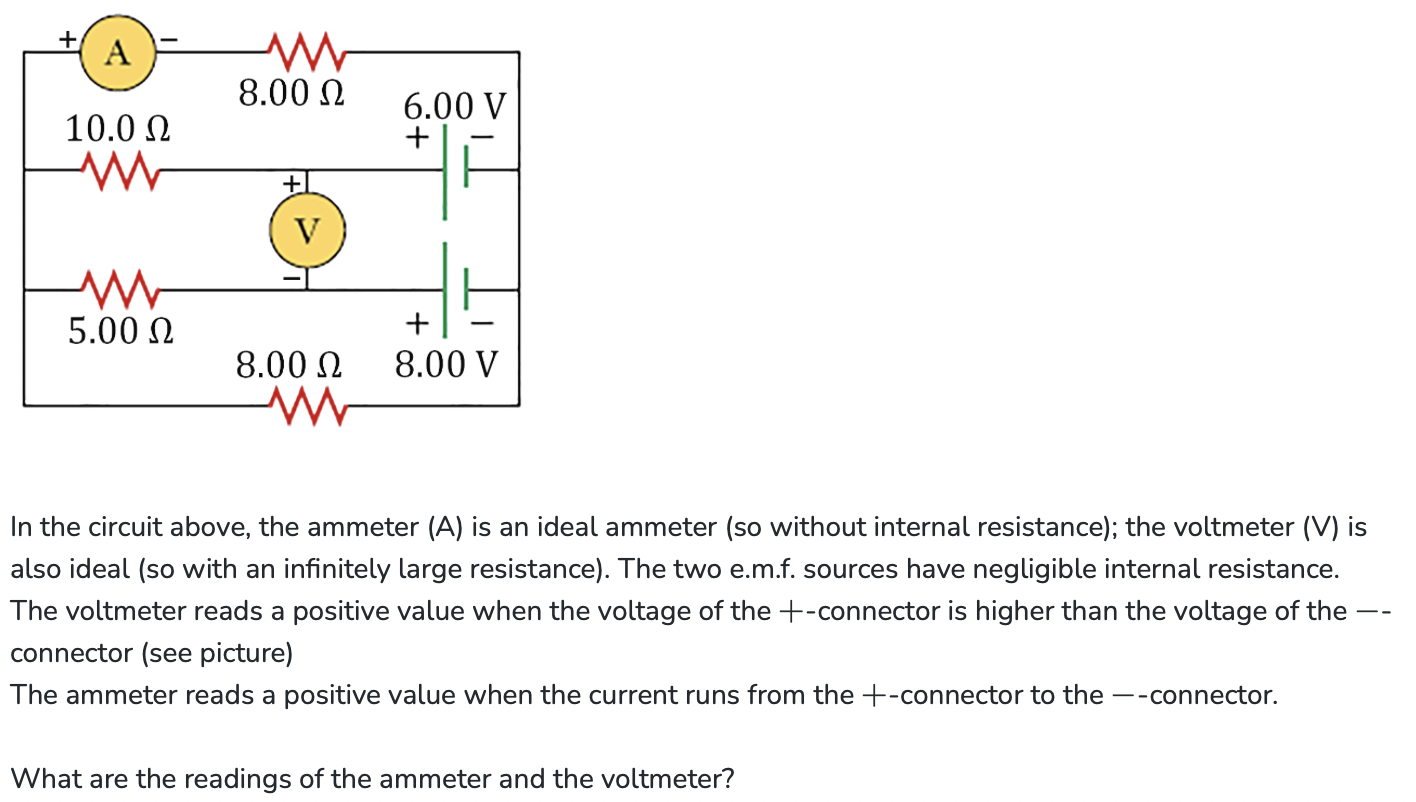

In the circuit above, the ammeter \( (\mathrm{A}) \) is an ideal ammeter (so without internal resistance); the voltmeter (V) is also ideal (so with an infinitely large resistance). The two e.m.f. sources have negligible internal resistance. The voltmeter reads a positive value when the voltage of the \( + \)-connector is higher than the voltage of the connector (see picture) The ammeter reads a positive value when the current runs from the \( + \)-connector to the \( - \)-connector. What are the readings of the ammeter and the voltmeter?


We have an Answer from Expert

View Expert Answer

Expert Answer


The resistance of the resistors in the given circuit are, R1=10?R2=5?R3=8? The potential
