(Solved): Here is a branched water distribution system: J1(X,Y,Z):0,0,100ftJ2(X,Y,Z):500,200,70ftJ3( ...

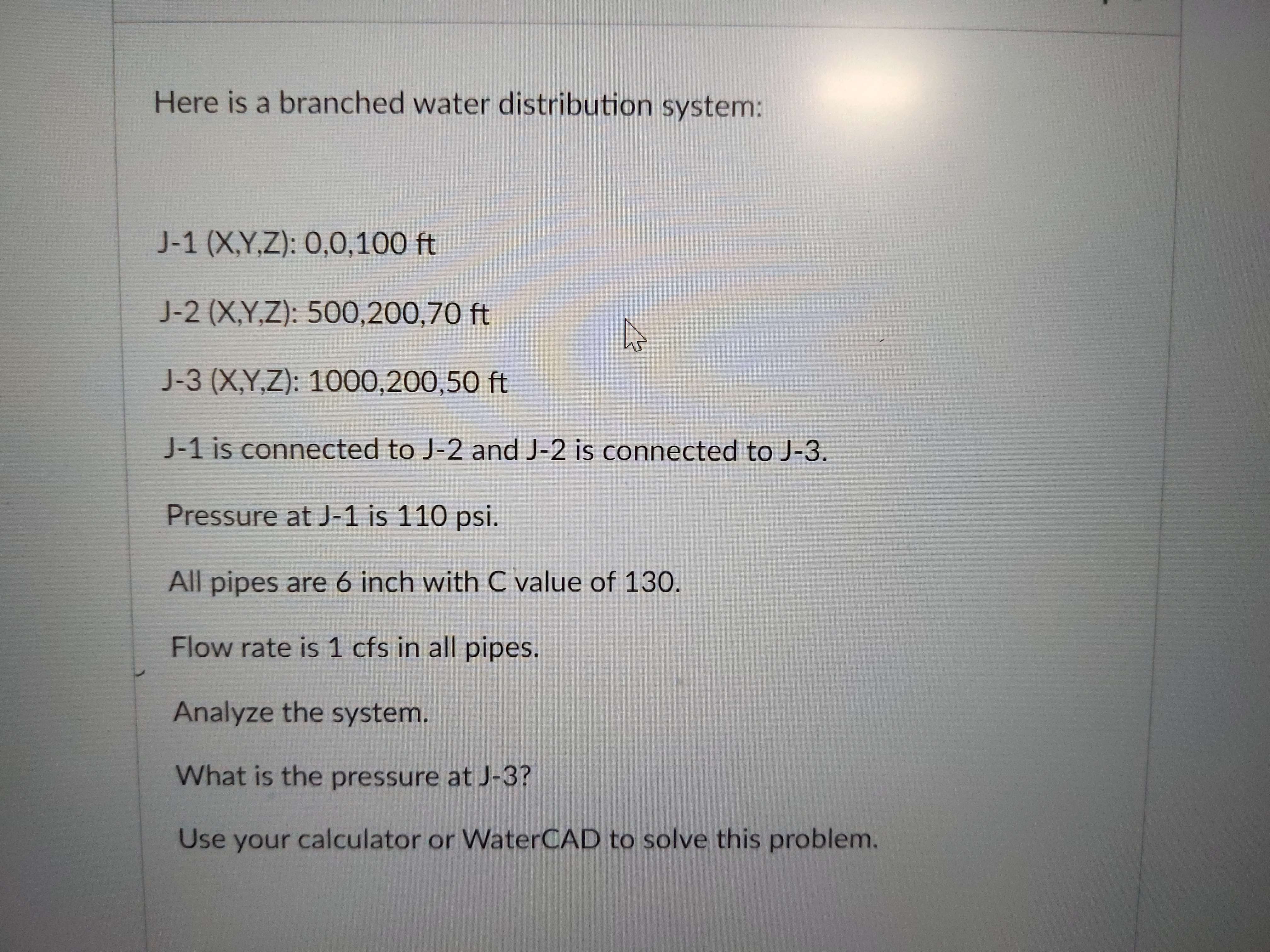

Here is a branched water distribution system: $\begin{array}{l}J?1(X,Y,Z):0,0,100\mathrm{ft}\\ J?2(X,Y,Z):500,200,70\mathrm{ft}\\ J?3(X,Y,Z):1000,200,50\mathrm{ft}\end{array}$ $\mathrm{J}?1$ is connected to $\mathrm{J}?2$ and $\mathrm{J}?2$ is connected to $\mathrm{J}?3$. Pressure at J-1 is 110 psi. All pipes are 6 inch with $C$ value of 130 Flow rate is $1\mathrm{cfs}$ in all pipes. Analyze the system. What is the pressure at $\mathrm{J}?3$ ? Use your calculator or WaterCAD to solve this problem.
