(Solved): h the case of purely resistive, what is the relationship between voltage and current waveforms? a. ...

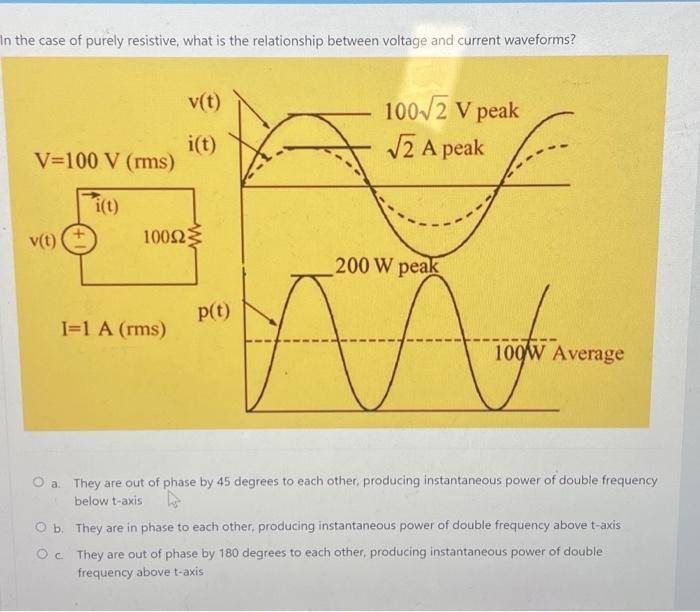

h the case of purely resistive, what is the relationship between voltage and current waveforms? a. They are out of phase by 45 degrees to each other, producing instantaneous power of double frequency below \( \mathrm{t} \)-axis b. They are in phase to each other, producing instantaneous power of double frequency above \( t \)-axis c. They are out of phase by 180 degrees to each other, producing instantaneous power of double frequency above t-axis
